● Accuracy: ± 0.3% of Full Scale
● Ergonomic, durable, heavy-duty metal construction
● Reversible display
● Selectable Units:N, kgf, lbf, ozf and/or gf
● Variety of alarm output function
● USB and RS232 data upload
● Capacity/Resolution N: 500/0.1
● Capacity/Resolution kgf: 50/0.01
● Capacity/Resolution lbf: 110/0.1
●Capacity/Resolution ozf:;1800/1
● Accuracy: ± 0.3% F.S.
● Selectable Units: N, gf, kgf, ozf, and lbf. (Selectable)
● Display: 160*128 dot matrix LCD with LED Backlight
● Overload: Capacity 120% F.S.
● Overload Protection: Overload Protection Mechanism
● Measurement Mode: Track, Peak, PreSet
● Sampling Rate: 1000 Hz
● Memory: 500 data
● Power: 3.6VDC Ni-MH rechargeable batteries
● Battery Life: Approx. 8 hours per charge
● Charger/Adaptor: Universal USB/BM charger, Input:110~240VAC
● Outputs: USB, overload output
● Dimensions: 150*72*33mm
● Weight 0.45 kg (1 lb)
● Power (VAC):100V-240V

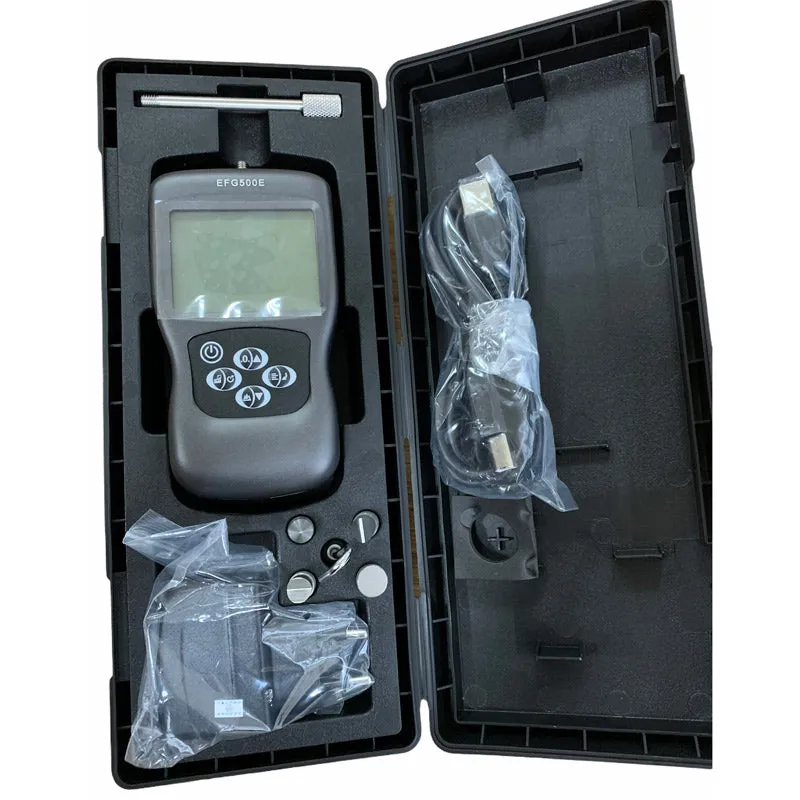

Packing list:
1x EFG500 Digital Force Gauge
1x Power Adapter
1x Extension Rod
1x Hook Adapter
1x Chisel Adapter
1x Notched Adapter
1x Flat Adapter
1x Cone Adapter
