● Durable metal case
● Automatic reversible display
● Touch key for minimized disturbance
● Mechanical overload protection
● Curve or digital display modes
● Calibration certificate Included
● Charger with US/EUR/UK Plugs selectable
● USB or RS232 communication interface, easy to communicate with PLC
Specification:
● Capacity/Resolution N: 200/0.05
● Capacity/Resolution kgf: 20/0.005
● Capacity/Resolution lbf: 44/0.01
● Capacity/Resolution ozf: 700/0.1
● Capacity/Resolution gf: 20000/5
● Accuracy: ± 0.2% F.S.
● Selectable Units: N、mN、gf、 kgf、 ozf and lbf
● Display: 160*128 dot matrix LCD(2.8 inch) with LED Backlight
● Overload Capacity: 150% of F.S. (LCD blinks beyond 110%)
● Overload Protection: Overload Protection Mechanism to prevent to be damaged
● Measurement Mode: Track 、Peak、 Auto-Peak、First Peak
● Display Mode: Curve / digital
● Data Sampling Rate: 2KHz
● Display Update Rate: 10 times/second
● Memory: 1000 data
● SetPoint: Programmable high and low limits
● Battery Indicator: The display flashes the battery icon when the battery is low
● Power: 3.6VDC 800mAH Ni-Mh rechargeable batteries
● Battery Life: Approx. 14 hours per charge
● Charger / Adaptor: Universal USB/BM charger, Input:110~240VAC
● Temperature Effects: <0.03% FS per °C

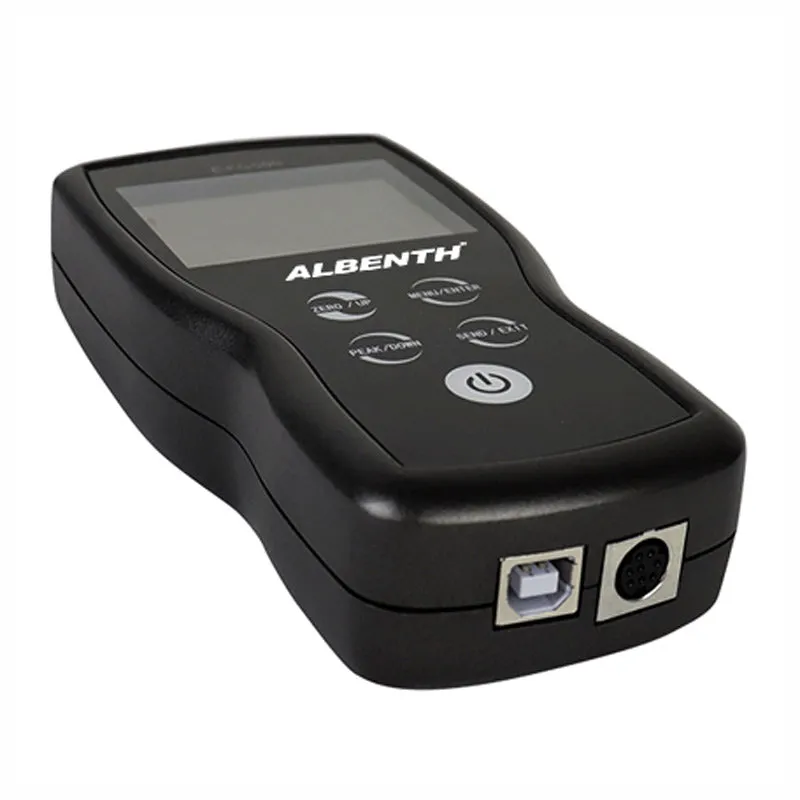

● Communication: USB or RS-232
● Software: Free software for USB communication
● Outputs: RS-232, "Within" set point output， "Under or over" set point output
● Operating environment: Temperature: -10 to 40°C
● Relative Humidity: 20 to 80%
● Storage environment
● Temperature: -20 to 50°C
● Relative Humidity: 5 to 90%
● Dimensions: 160*73*34mm
● Weight: 0.7 kg (1.5 lb)

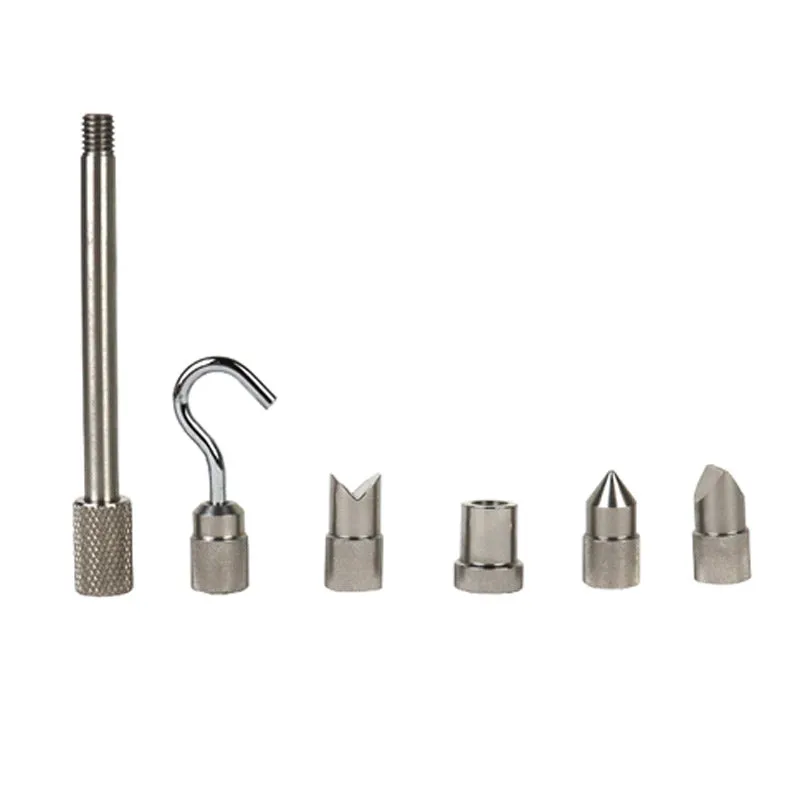

● Accessories: AC adapter/charger, USB cable, 6 attachments: hook, flat tip, conical tip, chisel tip, notched tip, extension shaft
● Options: Mini-printer, Measuring Adapters, EST-FG1M1 Test Stand, EST-FG2V Motorised Test Stand, EST-FG2H Motorised Test Stand, Ergonomics measuring Kit.

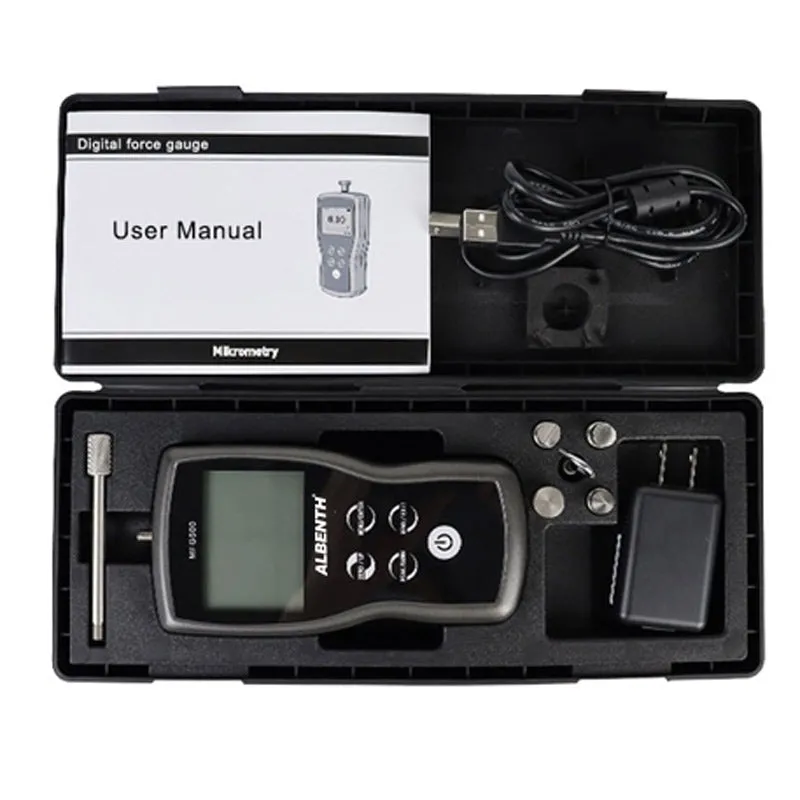

Packing list:

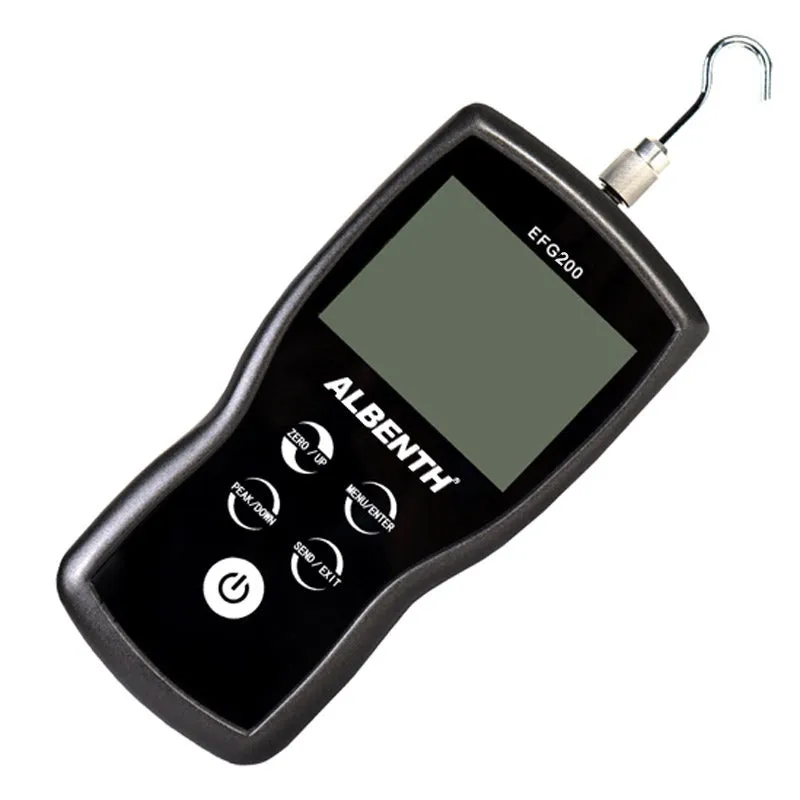

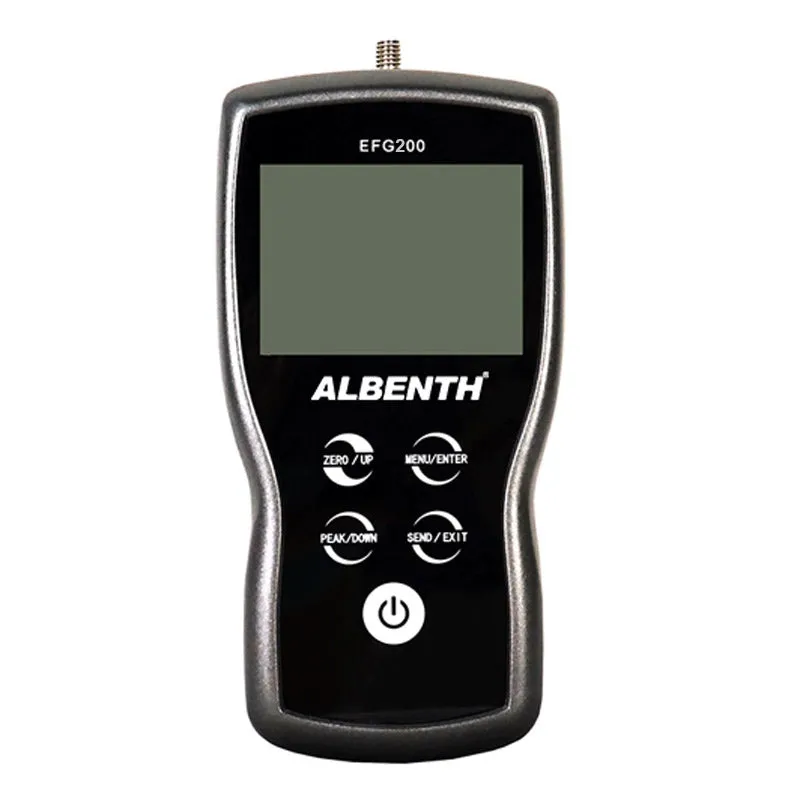

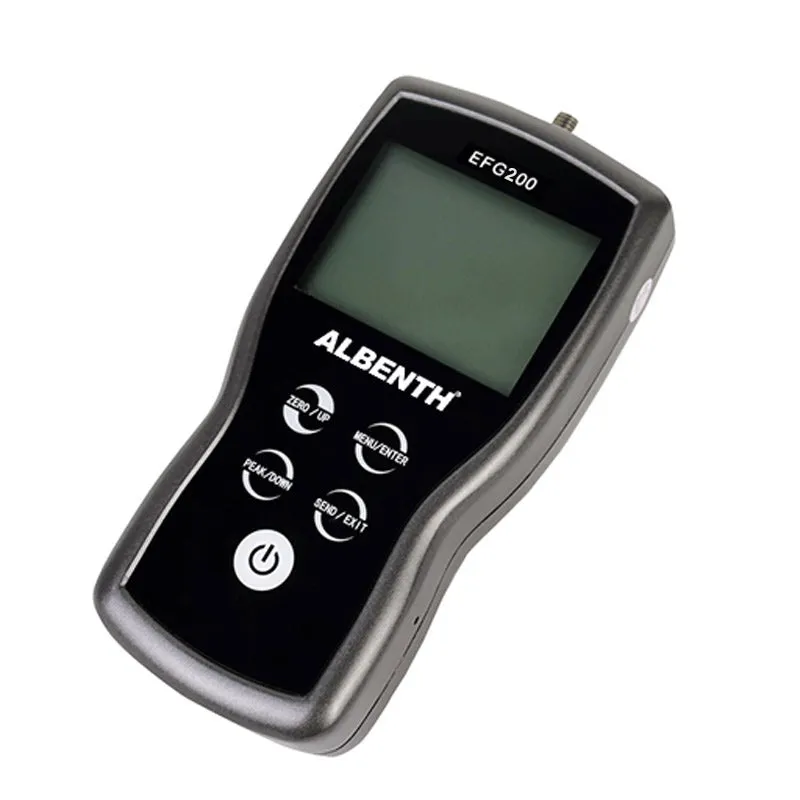

1x EFG200 Digital Force Gauge
1x USB cable,
1x Power Adapter
1x Extension Rod
1x Hook tip
1x Flat tip
1x Chisel tip
1x Notched tip
1x Cone(conical) tip
