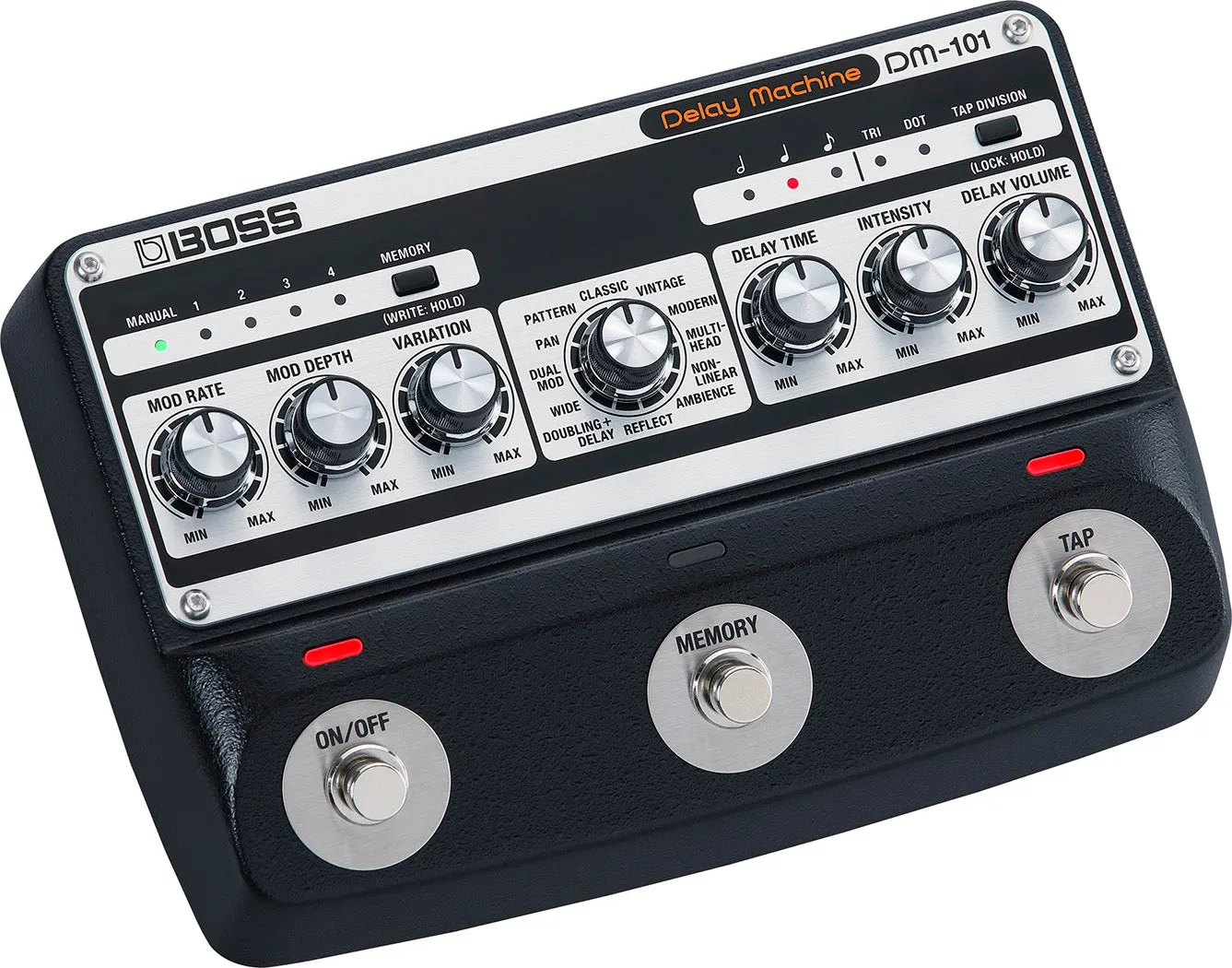

Classic sound meets modern power with the DM-101 Delay Machine, the ultimate analog delay. Driven by eight BBDs under smart CPU control, this inspiring pedal delivers 12 unique modes, stereo operation, and a wide array of tonal colors, all while maintaining 100 percent analog signal processing throughout. And with 127 user memories, tap tempo, carryover, MIDI, and more, the DM-101 brings you the features and versatility of an advanced digital pedal—but with the vibrant, characterful sound that’s only possible with authentic analog BBD circuitry.
Features:
- The ultimate analog delay pedal realized with advanced BOSS technology
- Fully analog BBD audio circuitry shaped by precision digital CPU control
- Warm, saturated, and highly musical tone
- Twelve modes deliver a wide range of mono and stereo delay textures, created using up to eight internal BBDs

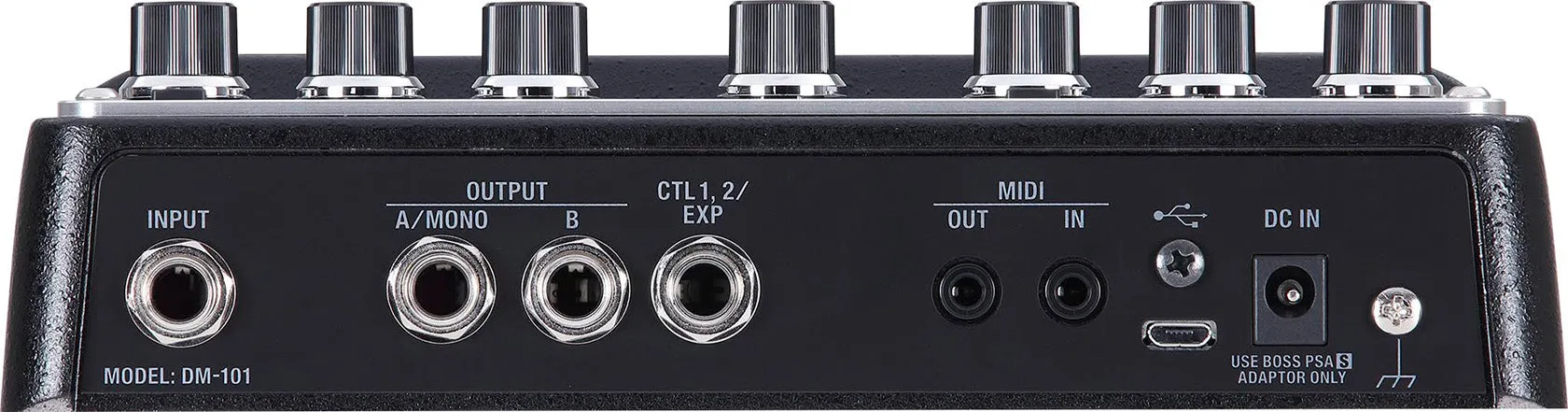

- Stereo output with flexible signal routing options
- Adjustable modulation rate and depth with dedicated knobs
- Variation knob for controlling multiple parameters that are unique to each mode
- Selectable carryover for maintaining delay trails when the effect is bypassed
- MIDI I/O on mini TRS connectors
- Tap tempo function and tap division switch for creating rhythmic delays
- Four onboard memories plus the current panel settings
- 127 user memories accessible via MIDI program change
- Expandable control via external footswitches, an expression pedal, or MIDI
Specification:
- Memory: 127 Manual
- Delay Modes:
- CLASSIC
- VINTAGE
- MODERN
- MULTI-HEAD
- NON-LINEAR
- AMBIENCE
- REFLECT [STEREO]
- DOUBLING DELAY [STEREO]
- WIDE [STEREO]
- DUAL MOD [STEREO]
- PAN [STEREO]
- PATTERN [STEREO]
- Bypass: Buffered

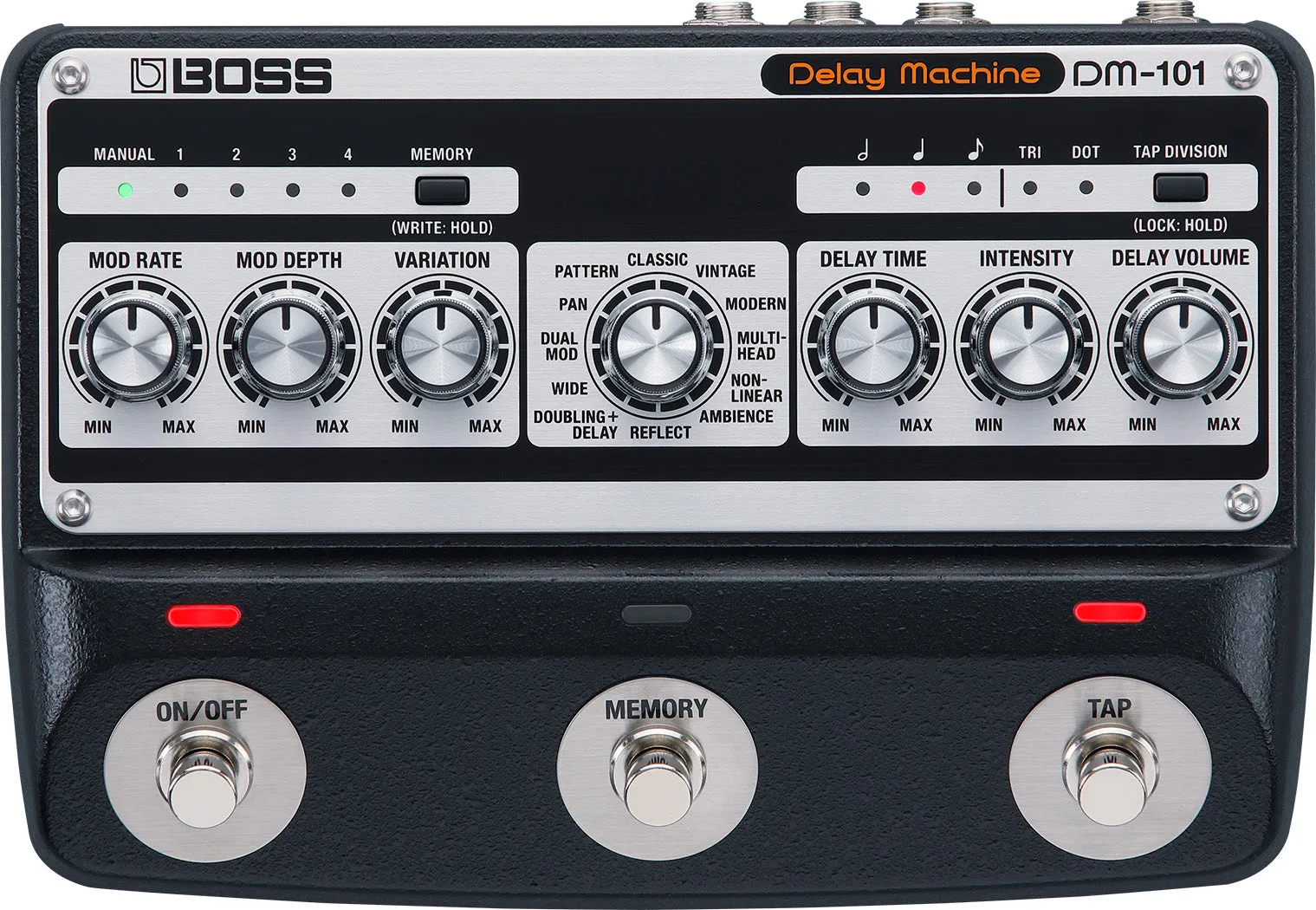

- Controls:
- ON/OFF switch
- MEMORY switch
- TAP switch
- MOD RATE knob
- MOD DEPTH knob
- VARIATION knob
- MODE knob
- DELAY TIME knob
- INTENSITY knob
- DELAY VOLUME knob
- MEMORY button
- TAP DIVISION button
- Power Supply: AC Adaptor
- Current Draw: 260 mA
- Accessories:
- AC adaptor
- Owner’s Manual
- Leaflet (“USING THE UNIT SAFELY“, “IMPORTANT NOTES“ and “Information“)
- Rubber foot x 4
