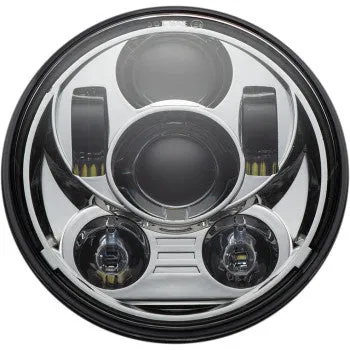

Features
- Features projection style high and low beam with advanced optical D lenses for a smooth, bright white beam pattern and superior field of vision
- Headlamp automatically keeps low beam LEDs illuminated when high beam is activated, no additional harnesses required
- H4 connector makes for an effortless plug and play installation
- 6000K color temperature
- HIGH BEAM: 3050 LM, 2.17 AMPS at 12V
- LOW BEAM: 2050 LM, 1.34 AMPS at 12V
- DOT/SAE compliant
Specs
| PRODUCT NAME | HEADLAMP |
| FOR MAKE | HARLEY DAVIDSON |
| HOUSING/STEM COLOR | CHROME |
| LENS COLOR | CLEAR |
| LED/LIGHT COLOR | WHITE |
| LENS MATERIAL | POLYCARBONATE |
| HOUSING MATERIAL | DIE-CAST ALUMINUM |
| OVERALL DIAMETER | 146 MM (5-3/4") / 146 MM / 5-3/4" |
| BULB TYPE | LED |
| FITS BULB SOCKET | H4 |
| FILAMENT/FUNCTION | DUAL |
| UNITS | EACH |
| RIDING STYLE | STREET |
Package info
| WEIGHT | 2.1 LBS |
| HEIGHT | 3.8 |
| LENGTH | 7.7 |
| WIDTH | 7.2 |
Fitments
| 2021-2022 | Harley-Davidson | Sportster S | - | - |
| 2018-2021 | Harley-Davidson | Iron 1200 XLNS | - | - |
| 2018-2019 | Harley-Davidson | Forty-Eight Special XLXS | - | - |
| 2016-2020 | Harley-Davidson | 1200 Roadster XLCX | - | - |
| 2014-2017 | Harley-Davidson | SuperLow 1200 XLT | - | - |
| 2012-2016 | Harley-Davidson | Seventy-Two XLV | - | - |
| 2011-2019 | Harley-Davidson | 883 SuperLow XLL | - | - |
| 2010-2022 | Harley-Davidson | Forty-Eight XLX | - | - |
| 2009-2022 | Harley-Davidson | Iron 883 XLN | - | - |
| 2009-2012 | Harley-Davidson | Sportster 1200 X XR | - | - |
| 2009-2012 | Harley-Davidson | Sportster 1200 XR | - | - |
| 2007-2012 | Harley-Davidson | 1200 Nightster XLN | - | - |
| 2007-2009 | Harley-Davidson | 883 EFI XL | - | - |
| 2007 | Harley-Davidson | Sportster 1200 XL 50 | - | - |
| 2006-2011 | Harley-Davidson | 1200 Low EFI XLL | - | - |
| 2006-2010 | Harley-Davidson | 883 Low EFI XLL | - | - |
| 2006-2008 | Harley-Davidson | 1200 Roadster EFI XLR | - | - |
| 2006 | Harley-Davidson | 1200 Low XLL | - | - |
| 2005-2006 | Harley-Davidson | 883 Low XLL | - | - |
| 2004-2006 | Harley-Davidson | 883 XL | - | - |
| 2004-2006 | Harley-Davidson | 1200 Roadster XLR | - | - |
| 2002-2019 | Harley-Davidson | 1200 Custom EFI XLC | - | - |
| 2002-2003, 2011-2017 | Harley-Davidson | 1200 XLCP | - | - |
| 2002-2003, 2005-2007 | Harley-Davidson | 883 Roadster EFI XLR | - | - |
| 2002-2003, 2005-2007 | Harley-Davidson | 883 Roadster XLR | - | - |
| 2000 | Harley-Davidson | FXR 4 | - | - |
| 1999-2009 | Harley-Davidson | 883 Custom EFI XLC | - | - |
| 1999 | Harley-Davidson | FXR 2 | - | - |
| 1999 | Harley-Davidson | FXR 3 | - | - |
| 1999 | Harley-Davidson | Softail Night Train FXSTB | - | - |
| 1998-2006 | Harley-Davidson | 883 Custom XLC | - | - |
| 1997-1999 | Harley-Davidson | Softail Heritage Springer FLSTS | - | - |
| 1996-2006 | Harley-Davidson | 1200 Custom XLC | - | - |
| 1996-2003 | Harley-Davidson | 1200 Sport XLS | - | - |
| 1995-1997 | Harley-Davidson | Softail Bad Boy FXSTSB | - | - |
| 1994-1996 | Harley-Davidson | Softail Heritage Special FLSTN | - | - |
| 1993 | Harley-Davidson | Softail Nostalgia FLSTN | - | - |
| 1992 | Harley-Davidson | Dyna Glide Custom FXDC | - | - |
| 1990-1999 | Harley-Davidson | Softail Fat Boy FLSTF | - | - |
| 1988-2003 | Harley-Davidson | Sportster 1200 XLH | - | - |
| 1988-1999 | Harley-Davidson | Softail Springer FXSTS | - | - |
| 1987-2003 | Harley-Davidson | 883 Hugger XLH | - | - |
| 1986-2003 | Harley-Davidson | Sportster 883 XLH | - | - |
| 1986-1999 | Harley-Davidson | Softail Heritage Classic FLSTC | - | - |
| 1986-1999 | Harley-Davidson | Softail Custom FXSTC | - | - |
| 1986-1995 | Harley-Davidson | 883 Deluxe XLH | - | - |
| 1986-1990 | Harley-Davidson | Softail Heritage FLST | - | - |
| 1986-1988 | Harley-Davidson | Sportster 1100 XLH | - | - |
| 1984-1999 | Harley-Davidson | Softail Standard FXST | - | - |
| 1983-1985 | Harley-Davidson | Sportster 1000 XR | - | - |
| 1983-1985 | Harley-Davidson | Sportster 1000 XLX | - | - |
| 1979-1985 | Harley-Davidson | Roadster 1000 XLS | - | - |
| 1977-1979 | Harley-Davidson | Café Racer XLCR | - | - |
| 1977-1978 | Harley-Davidson | Sportster 1000 XLT | - | - |
| 1972-1985 | Harley-Davidson | Sportster 1000 XLH | - | - |
| 1972-1985 | Harley-Davidson | Sportster 750 XR | - | - |
| 1972-1979 | Harley-Davidson | Sportster 1000 XLCH | - | - |
| 1957-1971 | Harley-Davidson | Sportster 900 XL | - | - |
| 1957-1971 | Harley-Davidson | Sportster 900 XLCH | - | - |
| 1957-1971 | Harley-Davidson | Sportster 900 XLH | - | - |
