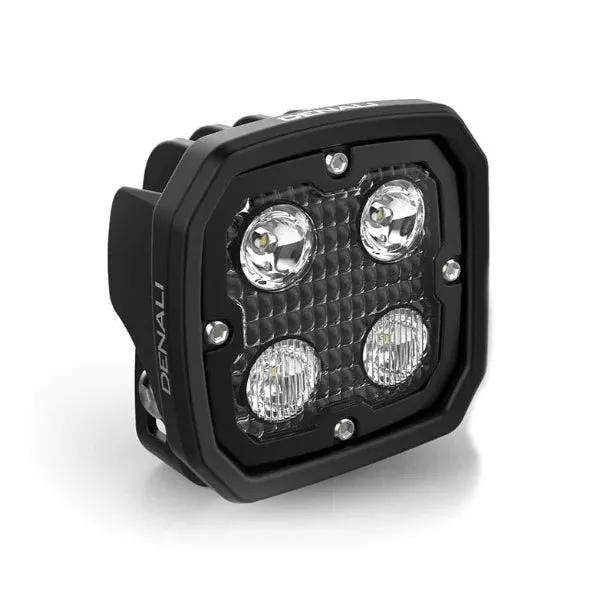

Simply put; the DENALI D4 is a beast. It is DENALI’s most powerful light packing the punch of 4380 lumens in an aggressively styled housing. The installed hybrid lens is equipped with two elliptical flood lenses and two spot beam lenses to create the ultimate hybrid beam pattern; a super wide close-range flood and a piercing spot beam in one housing. The included spot lens throws a massive beam of light and carries an official E-Mark certification.
D4 Pod Features
- High-Intensity Series Cree LEDs outputting 4380 lumens per pod
- DrySeal™ Submersible Waterproof light can withstand the most extreme environments
- LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating
- Low profile mounting bracket with stainless steel hardware included
- Additional E-Mark Approved flood lens included
- Amber lenses available (sold separately)
D4 Pod Specs
- LED’s: (4x) 10 Watt Cree XPL HI
- Power Draw: 3.3 Amps
- Raw Lumens: 4380
- DataDim™ Compatible: Yes
- Operating Voltage: 12 VDC

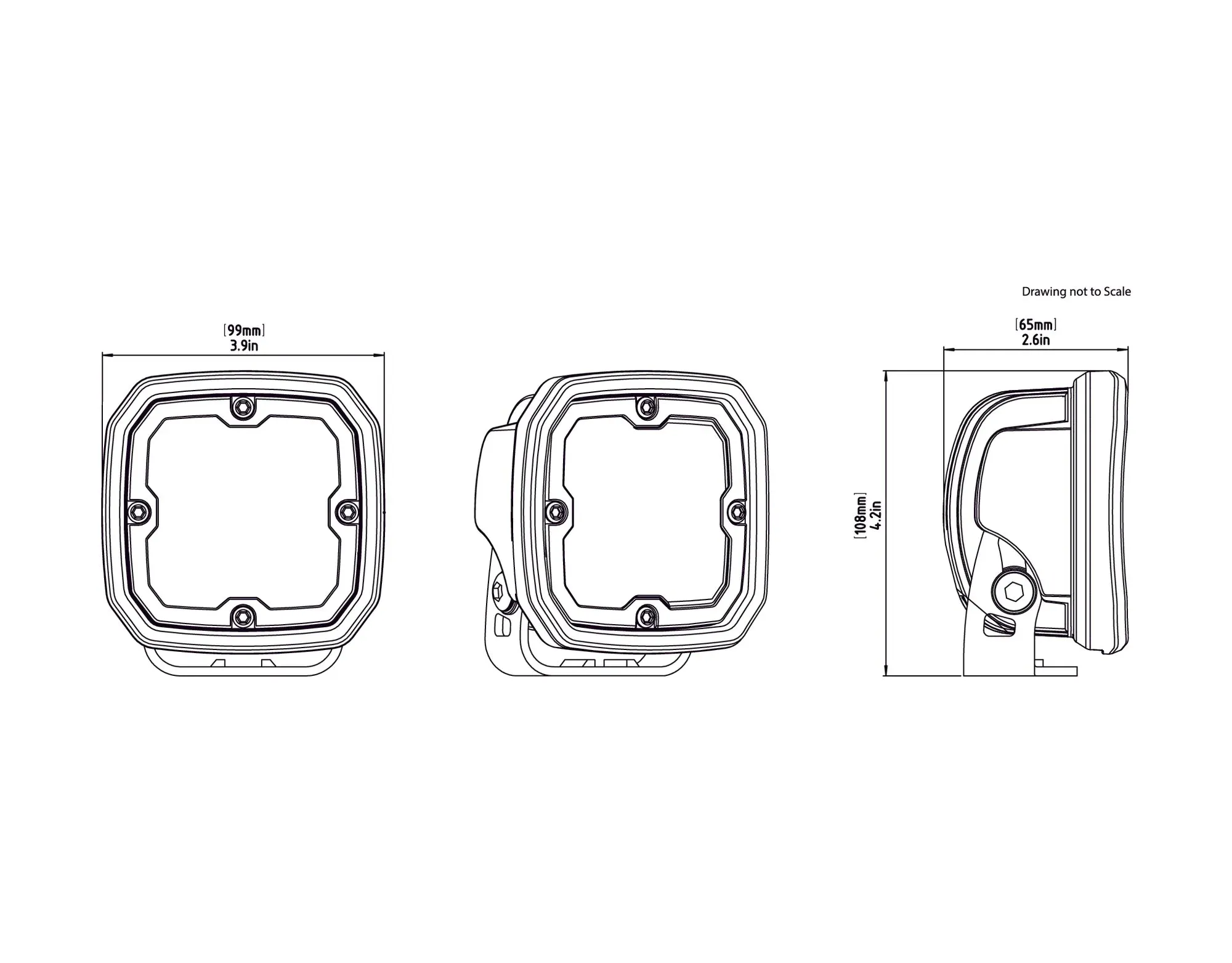

- Pod Size: 3.9” Square x 2.6” Deep
- Pod Weight: 1.55 lbs
- IP67 Waterproof & Submersible
- E Mark Approved Spot Lens
D4 Pod - What’s In The Box?
- (1x) LED Light Pods
- (1x) True-Hybrid™ Lenses (Installed)
- (1x) E-Mark Approved Spot Lenses (included)
- (1x) Hinge Mounts with M8 Stainless Steel Hardware
- (1x) Wiring Pigtail.
New Wiring & Switching Options
For 2022 we have expanded on our standard light kit to deliver a customizable package that allows you to choose the best harness and lighting control option for your vehicle on your budget! Select from the options above or click on the links below to learn more about each of our wiring and switching options. Please be sure to add one of these options to your light pods to complete your DENALI lighting kit!
- - Robust, inexpensive, low-profile waterproof switch - the best option for a basic single intensity install
- - Robust, added length, and a flush mount illuminated rocker switch for dash mounting
- - Overmolded wire, and a premium illuminated switch with handlebar mounting kit
- - Add this clever dimmer module to any of the above harnesses to enable your lights to change intensity in sync with your factory high beam switch!
- - The top dog in LED lighting control allows you to independently turn on/off and dim two sets of lights from a single halo dimmer switch and unlocks heaps of bonus features like high/low sync, strobe with horn, flash with signal, cancel with signal, electronic fuse setting and even doubles as a battery voltage monitor!
And last but not least we also make a complete accessory manager () that has dozens of customizable settings for controlling LED lights but can also be used to power and control any electrical accessories from lights and horns to heated grips, dash cams and GPS units.
