This convenient Denali lighting kit combines several high-quality Denali components including a wiring harness, light mount, and lights. It's designed to give you everything you need to equip your machine with an improved lighting setup and illuminate your riding experience.

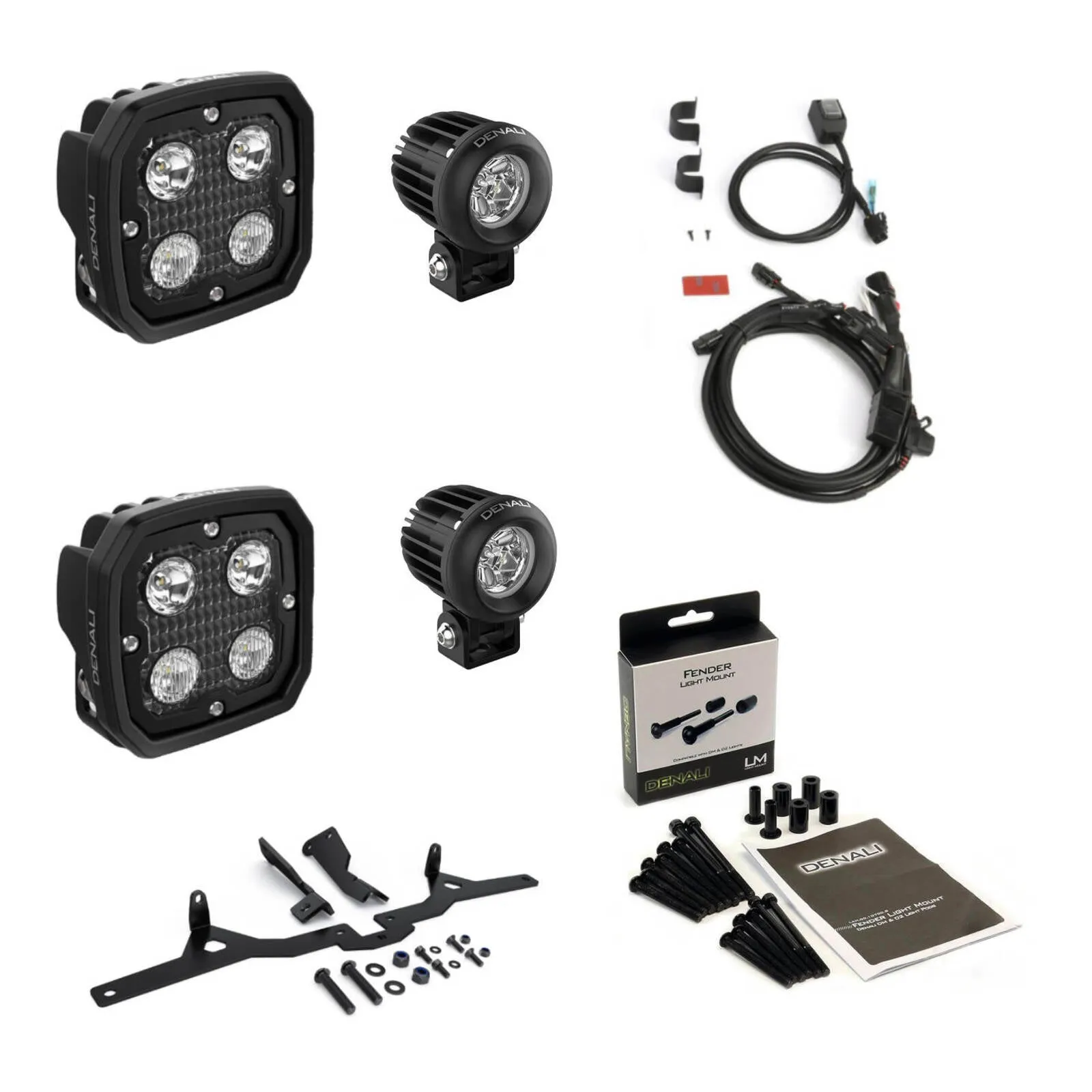

Kit contains:

1x DENALI 2.0 PREMIUM WIRING HARNESS KIT (REV08) (SKU: DEDNLWHS10900)

1x DENALI AUX LIGHT MOUNT HON AFR TWN CRF1100L '20-21' (SKU: DELAH0110700)

1x DENALI FENDER MNT DM/D2 LIGHTS [FITS M5, M6 FENDER MNT BLK] (SKU: DELAH0010700B)

2x DENALI D2 LED LIGHT POD - DATADIM™ TECHNOLOGY - SINGLE (DEDNLD2050)

2x DENALI D4 LED LIGHT POD - DATADIM™ TECHNOLOGY - SINGLE (SKU: DEDNLD4050)

DENALI 2.0 PREMIUM WIRING HARNESS KIT (REV08) details:

This DENALI Premium Wiring Harness features high-quality waterproof components and is designed to power two DENALI LED Light Pods. It features low-profile, water-tight connectors and premium moulded wire to ensure moisture is kept out of the system. The harness includes a completely sealed, waterproof switch that was engineered from the ground up to withstand harsh out-door abuse on powersports vehicles. It’s clever design can be either flush or bar mounted.

What’s In The Box?

• (x1) Premium Wiring Harness
• (x1) Single-Intensity Relay
• (x1) DrySeal™ ON-OFF Waterproof Illuminated Switch
• (x1) 7/8 inch Handlebar Switch Mount
• (x1) 1 inch Handlebar Switch Mount
• (x2) Self Tapping Screw
• (x1) Adhesive Pad
• (x4) Zip Ties

DENALI AUX LIGHT MOUNT HON AFR TWN CRF1100L '20-21' details:

This vehicle-specific driving light mount allows you to mount any DENALI driving light in the optimum location on your Africa Twin 1100 Adventure Sports model, right below and to the outside of your headlight. The design features a heavy-duty steel bracket assembly that securely mounts to the Africa Twin 1100 fairing support. The bracket has an M8 mounting hole for the light pods and includes all necessary mounting hardware.

This light mount is not compatible with the standard (non-adventure sports) Africa Twin 1100.

DENALI FENDER MNT DM/D2 LIGHTS [FITS M5, M6 FENDER MNT BLK] details:

This single point mount positions our smaller lights on the front fender to create the most low profile mounting option. This mount is compatible with our DM and D2 light pods.

DENALI 2.0 D2 LED LIGHT POD WITH DATADIM™ TECHNOLOGY details:

The D2 light was designed to create an impressive beam of light that is the perfect balance between night time distance and daytime conspicuity.

Features:

• High-Intensi ty Series Cree LEDs outputting 1095 lumens per pod
• DrySeal™ Submersible Waterproof light can withstand the most extreme environments
• Impact PC™ Polycarbonate bezels won't crack, fade or corrode like traditional aluminum bezels
• LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating
• Low profile mounting bracket with stainless steel hardware included
• Additional E-Mark Approved flood lens included
• Amber lenses available (sold separately)

Specifications:

• LED: (x1) 10 Watt Cree XPL HI
• Power Draw: 0.8 Amps
• Raw Lumens: 1095
• DataDim™ Compatible: Yes
• Operating Voltage: 12 VDC
• Pod Size: 2.2” Round x 2.4” Deep
• Pod Weight: 0.6 lbs
• IP67 Waterproof & Submersible
• E Mark Approved Flood Lens

What's in the box?

• (1x) LED Light Pod
• (1x) Spot Lenses (Installed)
• (1x) E-Mark Approved Elliptical Flood Lenses (Included)
• (1x) Hinge Mount with M8 Stainless Steel Hardware
• (1x) Wiring Pigtail

DENALI D4 LED LIGHT POD - DATADIM™ TECHNOLOGY - SINGLE details:

Simply put; the DENALI D4 is a beast. It is DENALI’s most powerful light packing the punch of 4380 lumens in an aggressively styled housing. The installed hybrid lens is equipped with two elliptical flood lenses and two spot beam lenses to create the ultimate hybrid beam pattern; a super wide close-range flood and a piercing spot beam in one housing. The included spot lens throws a massive beam of light and carries an official E-Mark certification.

D4 Pod Features

• High-Intensity Series Cree LEDs outputting 4380 lumens per pod
• DrySeal™ Submersible Waterproof light can withstand the most extreme environments
• LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating
• Low profile mounting bracket with stainless steel hardware included
• Additional E-Mark Approved flood lens included
• Amber lenses available (sold separately) DNL.D4.10100

D4 Pod Specs

D4 Pod - What’s In The Box?
