OVERVIEW

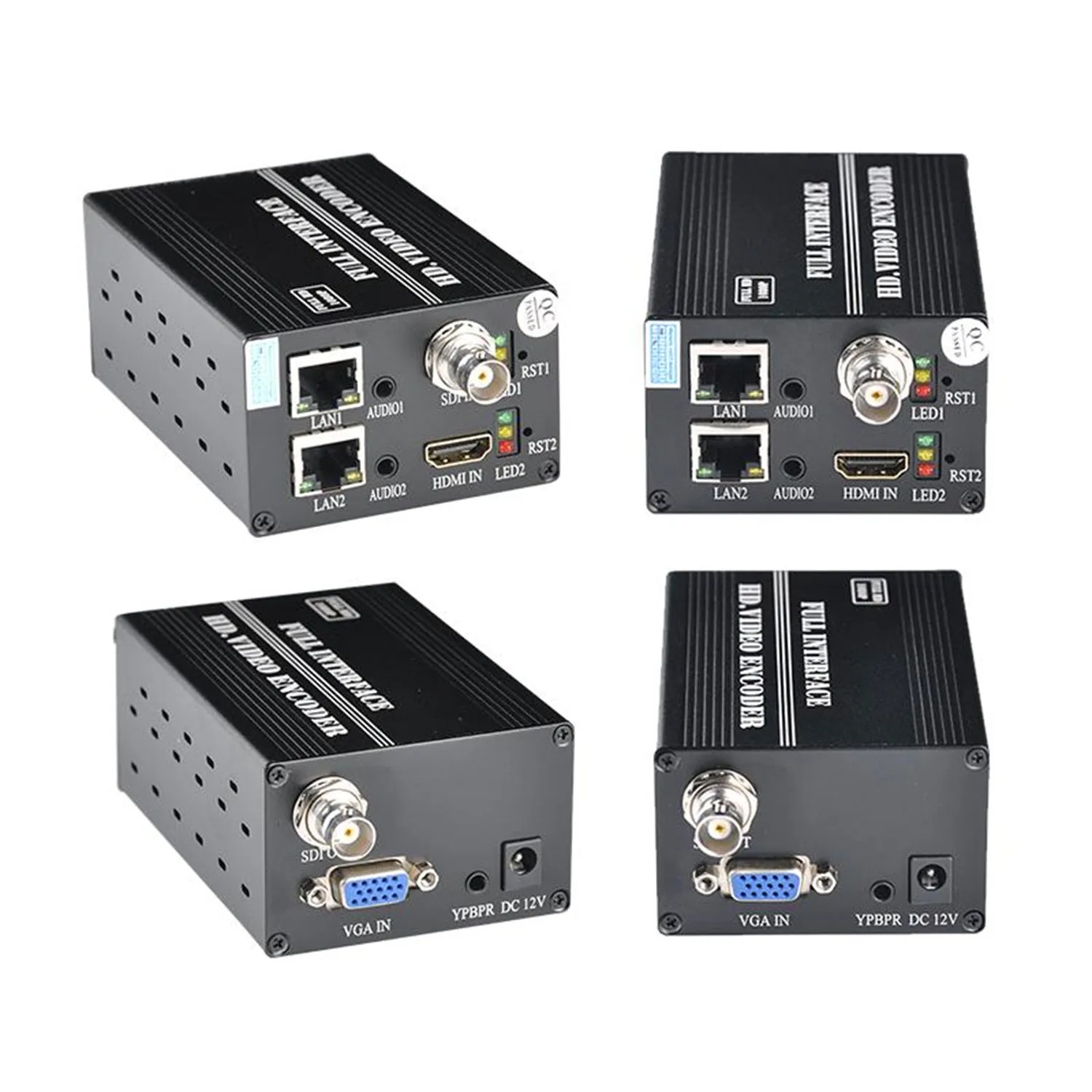

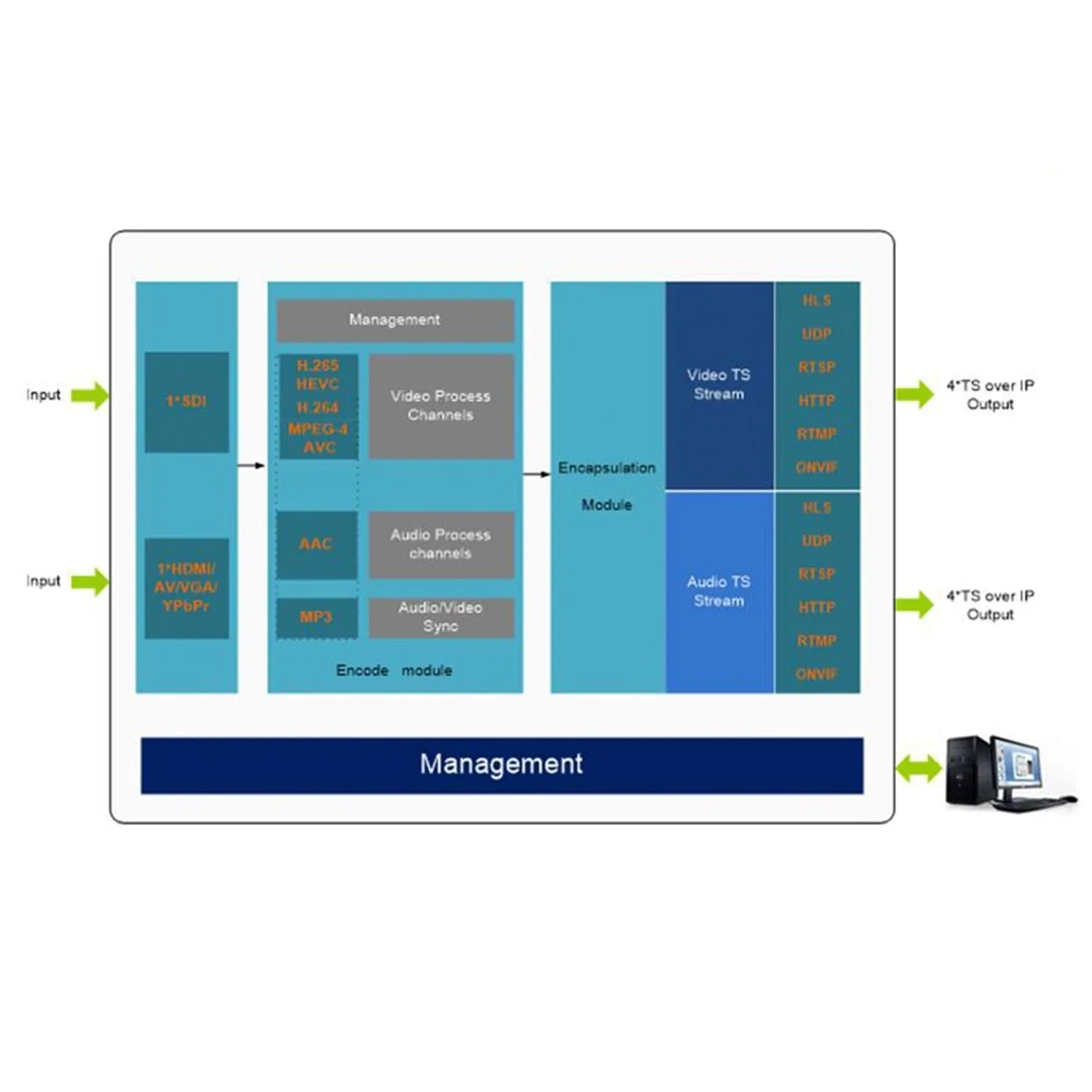

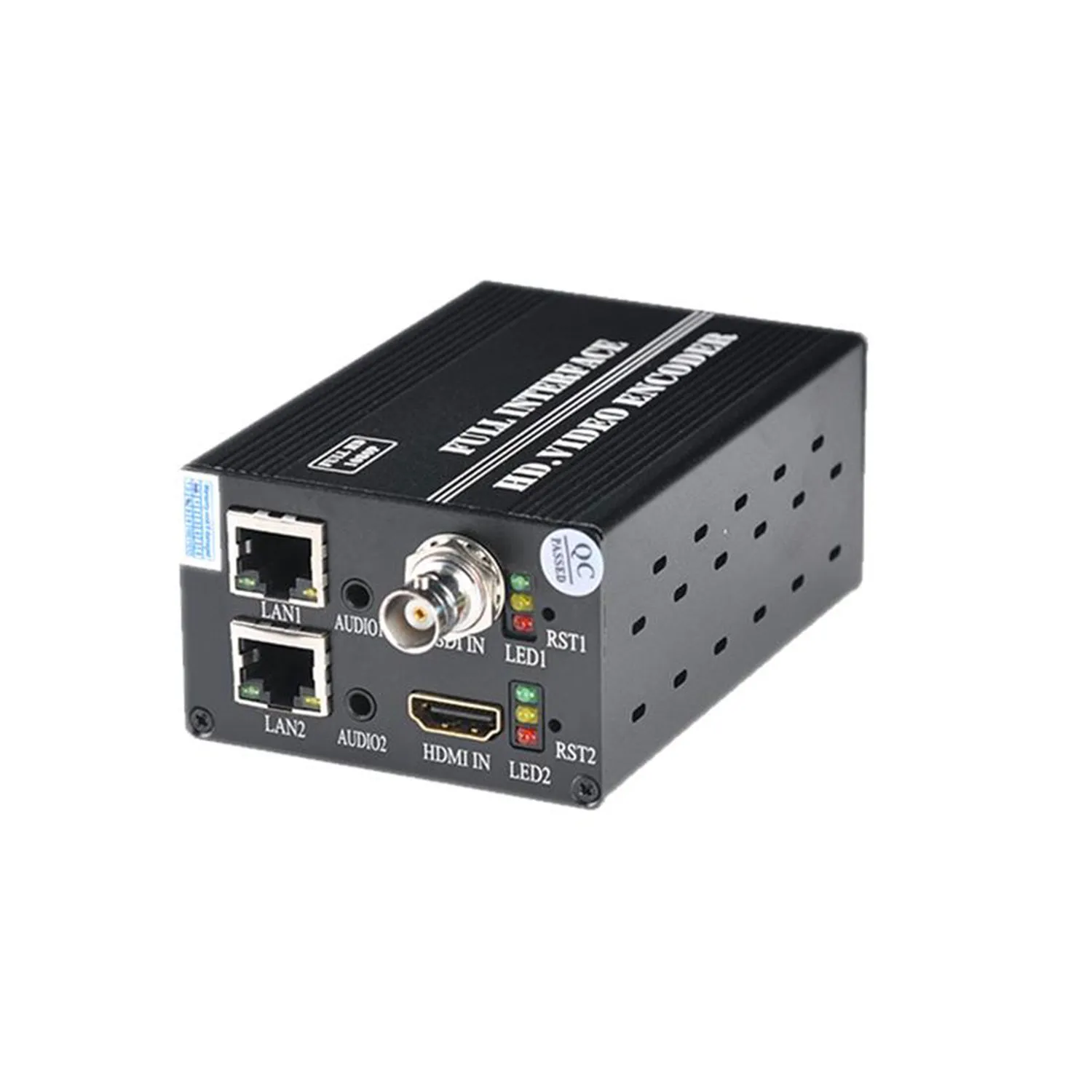

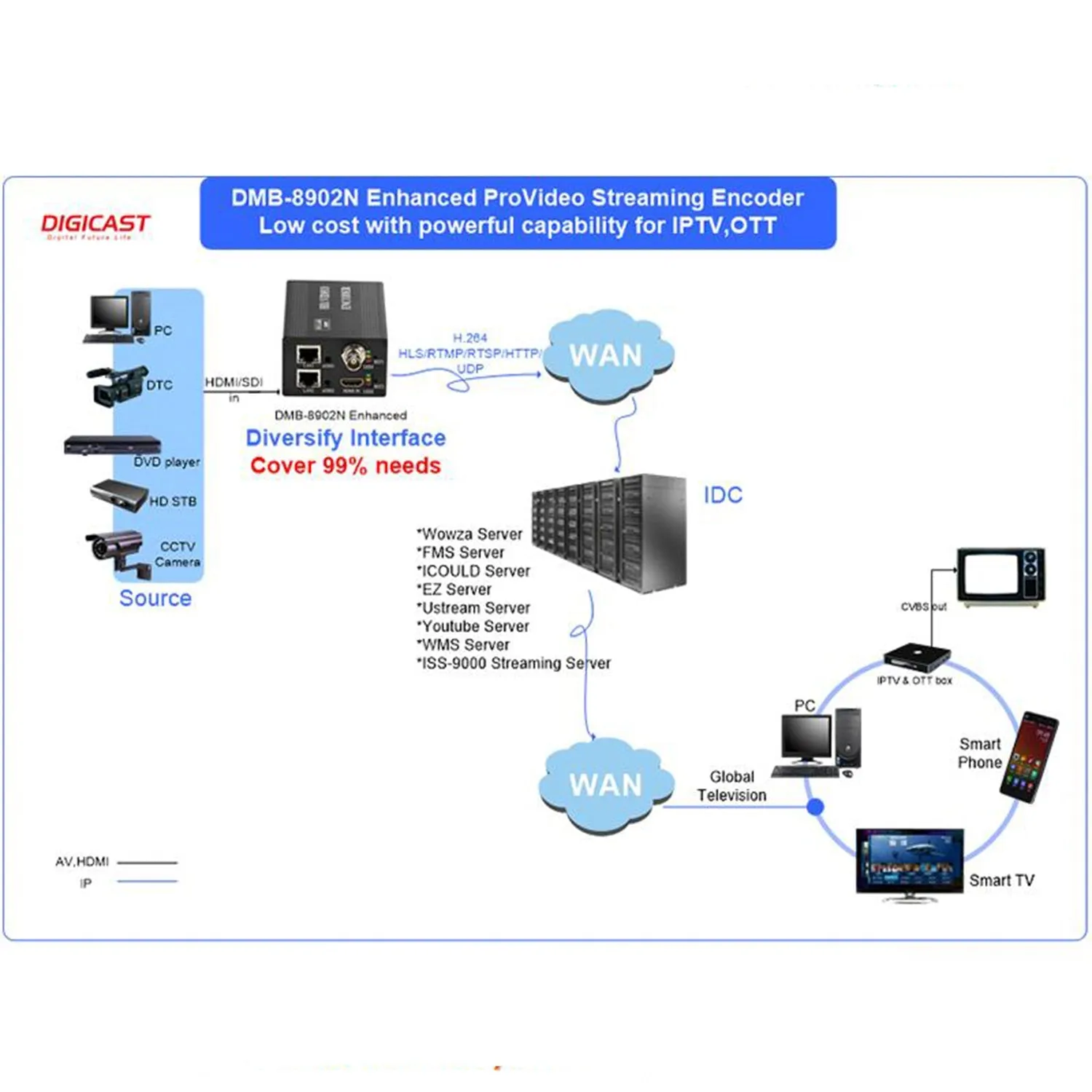

DMB-8902N Enhanced ProVideo Streaming Encoder support almost all the interfaces (with SDI VGA/HDMI/YPbPr/AV)for live video applications, features high performance, low latency,high compact and low bit rates for IPTV/OTT systems, realized Video & Audio real-time transmission via internet and adopts state-of-the-art compression technology of H.265/HVEC and H.264/AVC, which realizes its resolution to be up to 1080P. With powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate which can efficiently save the cost of bandwidth. DMB-8902N Enhanced accepts 1*SDI 1*HDMI/VGA/YPbPr/AV input, then output 8 channels TS over IP in H.265/HEVC and H.264/AVC format with multi-protocol, multi-resolution which can be freely adjusted according to your needs.

DMB-8902N Enhanced provides fully functional second development package, which can be applied to education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application.

FEATURES

◉Video Input: 1*Channel SDI 1*Channel HDMI/VGA/YPbPr/AV work simultaneously
◉Support up to 720P, 1080P HD and SD video input
◉Support H.265/HEVC, H.264 Main/High Profile and MP3 & AAC audio compression
◉Bitrate mode: CBR/VBR16Kbit/s~12Mbit/s
◉Support streaming resolution settings
◉GOP frame rate settings supported
◉Capable of image parameter settings
◉Insertable of logo and Scroll Caption; Adjustable of audio gain;
◉Video Output: Multiple output streams per input service to support Broadcast, VOD, IPTV and OTT, Mobile/ web, Set top box applications
◉Support up to 8* TS over IP stream out.
◉Switchable of audio output mode: Left, right and Stereo
◉Configurable of Multi-rate, Multi-resolution, Multi-protocol
◉Providing RTSP/HTTP/UDP or RTMP protocol
◉Support HDCP protocol, ONVIF Network Video Protocol
◉Any iOS browsers(iphone, ipad, MacBook etc) are able to have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players.
◉Any terminal devices/decoders are able to have streams from IPTV Streaming Encoder directly by RTMP protocol with software players(such as VLC).
◉Support multiple equipments display at the same time on a computer
◉System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
◉Support Microsoft standard flow driven architecture (WDM architecture), support Microsoft WMENCODER, compatible with Windows VFW software architecture and WDM mode.
◉Web-based management
◉Full-duplex mode 1000M

APPLICATIONS

◉Digital TV Broadcasting System
◉Digital TV Programs Transmission
◉Hotel TV System
◉Head-end system of Digital TV branch network
◉CATV Broadcasting system
◉Edge side of Digital TV backbone network
