The Wave Transformer is an analog, vintage-voiced, voltage-controlled oscillator with over 8 octaves of accurate pitch tracking. It has 7 simultaneous wave outputs, including a unique Complex output.

The Transform control morphs from a basic waveform through many strange iterations into a complex, gnarled mass of audio mutations at the Complex output. You can yield countless variations on these permutations by combining this novel circuit with Hard Sync, Soft Sync, Linear FM and Exponential FM. Additionally, you can mute the source waveform to use the circuit as a harmonic gate/VCA, rendering The Wave Transformer a voice unto itself. If that is not enough, there is a Shape Insert that allows you to transform external oscillations and modular-level audio sources.

Features

• Input: Hard Sync, Soft Sync, V/Octave, Shape Insert, Lin FM, Expo FM, Pulse Width CV Input, Transform CV Input, µTune CV Input
• Output: Sine, Triangle, Saw, Complex, Rectangle, Sub Pulse, Sub Square

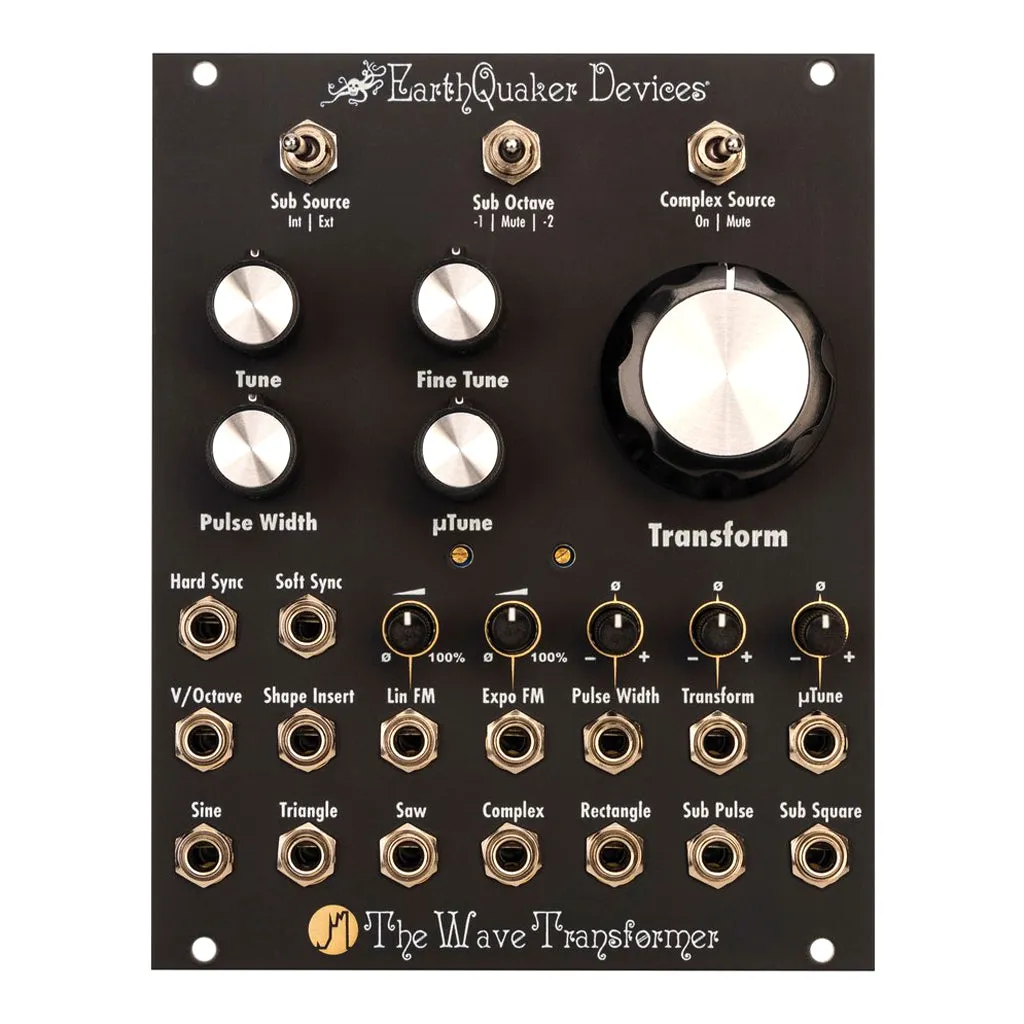

• Panel Controls: Sub Source, Sub Octave, Complex Source, Tune, Fine Tune, µTune (Micro Tune), Pulse Width, Transform
