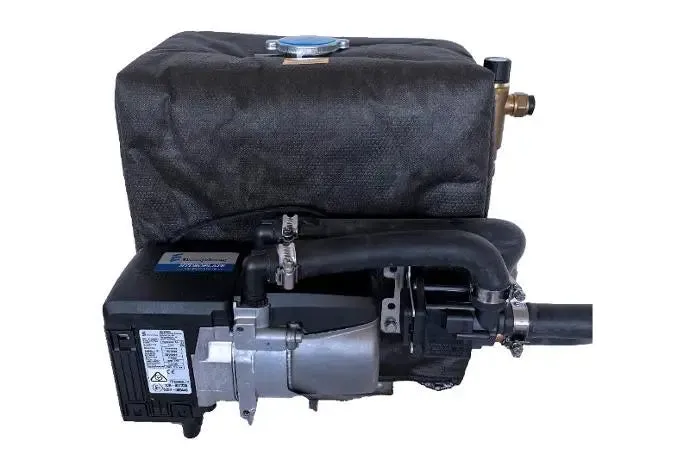

Elevate your motorhome, caravan, or camper experience with the Eberspächer Hydroplate Diesel Water Heater. Designed with precision and crafted for diverse applications, it's the ultimate solution for on-the-go comfort.

Key Features:

• Versatile Application: Ideal for Motorhomes, Caravans, Campers, and more.
• Fuel Flexibility: Operates using the vehicle's existing diesel tank or a designated tank.
• Efficient Operation: 12V low amp draw ensures constant 40°C water outflow with a flow rate of 5-10 litres/minute.
• Air Heating Option: An additional air heating matrix can be integrated to supply desired temperature air, offering a comprehensive off-grid hot water and air heating solution.
• Quick Heat-Up: In just 10-15 minutes post activation, enjoy a steady flow of 40°C hot water.
• Operational Mobility: Designed primarily for stationary use, but fully functional while on the move.

Specifications:

• Power Supply: 12V DC
• Optimal Flow Rate: 5-10 litres per minute for uninterrupted hot water supply.
• Model: Eberspächer HS3 D5E Hydroplate Basic Kit 292135300019 (29.2135.30.0019)
• Variation: D2L AS3 12V 1 OUTLET E/S PRO KIT

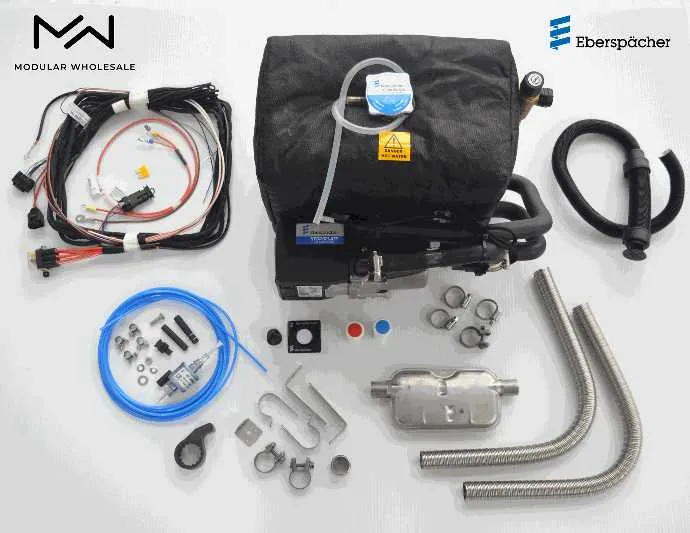

Kit Includes:

• HYDROPLATE HS3 and Tank Assembly: Ensures high performance and durability.
• Wiring Harness: Complete with provision for a basic On/Off Switch (included).
• Fuel Metering Pump: Includes pump holder for steady fuel supply.
• Fuel Line: 6-meter length ensures flexibility in installation.
• Exhaust System: Comes with a 2m stainless steel exhaust pipe and silencer.
• Air Intake: 0.5m air intake tube for efficient operation.
• Miscellany Pack: Screws, washers, clamps, P clips, zip ties, fuel line joiners, and more. Also includes a warranty card and a QR code for the digital manual.

Warranty Period:2 Years

Heating Capacity1300W to 4300W

Voltage12 V

Fuel Consumption (Litres/hour)0.59 l/h (Large) | 0.15 l/h (Small)

Weight12kg

Optimum Water Flowrate (Litres/minute)5-10 l/m

Fuel TypeDiesel

Custom Solutions: We also offer optional fan matrix units for specific needs and are eager to discuss your unique requirements further. Experience the epitome of comfort and efficiency with the Eberspächer Hydroplate.
