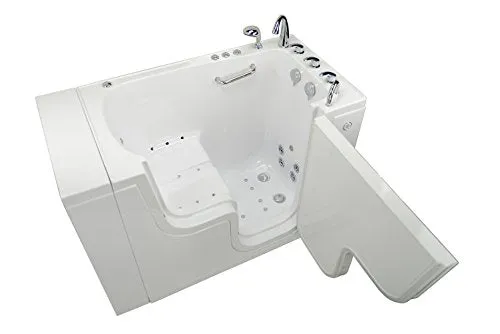

The Transfer32 is 2 inches wider than the Transfer. This model is designed to accommodate larger body types and recommended for bathers who want a roomier bathtub interior.

• 24" Wide Seat
• 13 Hydro Jets (7 upper, 6 lower)
• 17 Air Jets (11 upper, 6 lower)
• 1 Reversible End Panel for Left or Right Corner Installation
• 1 Extension Panel Kit for a 60" Alcove Installation
• Dimension: 32"W x 52"L x 42"H

Ella Acrylic Walk-in Tubs are vacuum formed from a solid, long-lasting acrylic sheet. The non-porous material in white gloss finish is easy to clean and impermeable to mold and mildew. Under the acrylic shell facade is a rust proof, stainless steel frame reinforced with multiple fiberglass mesh and gelcoat layers to ensure the durability of the tub’s structure. The frame has multiple leveling legs that can be adjusted for an easier installation and stronger support.

Ella’s Transfer32 Walk-In Tubs main feature is the aluminium L-Shape Outward Swing Door. While it was designed for wheelchair users and those with mobility issues, it has become very popular amongst everyday users due to effortless access into the tub. The door’s distinct shape and the engineering of the outward swing allows the door to clear a 21” tall toilet and create a wide entry for an easy transition from wheelchair into a smooth acrylic seat. The sleek rubber handle mounted on the inside panel of the door aids in closing the door. The L-shape outswing door is equipped with a unique gear and shaft driven, 2-latch door lock system concealed with an acrylic decorative cover. The 2-latch system creates a more secure and watertight door seal, edging out our competition who typically use a single latch/lever system.

The Transfer32 comes with our unique Ella Dual Drain Technology (DDT) consisting of two 2” gravity driven drains with four 2” outlets, 2 overflows and 2 openers, allowing a fast, reliable drainage. Two caps are also included to cover up to 2 of 4 ports if needed. The 2” drain outlets can be connected to the standard 1 ½” house drain with a T or Y fitting and piping selected by a professional plumber. The drain pipe configuration and selection of the pipes and fittings is up to the homeowner or licensed plumber. However, for the most efficient drainage, please consider connecting to all 4 ports and to a 2” house drain if possible.

Some may wonder how an Ella brand drain can drain faster even though it’s connected to a 1 ½” house drain using a T or Y fitting. That’s because as the water drains, air is pushed through the 2 overflows creating a vent system and reducing the amount of air bubbles preventing a free flow of the water. As a result, this produces the fastest gravity driven drain in the industry. The average drainage time evaluated by our dealers range from only 50 seconds to a couple minutes based on tub size, condition of the house drain and configurations.

The Transfer32 also includes one (1) reversible end panel for left or right corner installation option and one (1) extension panel kit for a 32” alcove installation. These panels cover the end of the tub to give your bathtub a completed look. Additional panels can be ordered in the case your tub will be installed to the wall as free standing.

We provide a limited lifetime warranty, of free replacement parts for the lifetime of the original customer living at the address of installation. This warranty is non-transferable to other customers or locations. Shipping costs and the labor of replacement(s) are not included.

Hydro Massage System

The Hydro Massage System includes: a hydro pump with an in-line water heater, eco-friendly ozone sterilization system, hydro massage intensity dial control, and strategically positioned hydro jet system for targeted and effective massaging.

The in-line water heater helps maintain the water temperature at constant level while bathing, if the water tank can produce enough hot water. It is suggested to upgrade to the largest available 75-gallon water heater to ensure enough hot water. Please consult with a professional contractor to determine if your water tank can provide enough hot water for a walk-in bathtub. Our ozone sterilization system is the most eco-friendly, chemical free disinfectant that can eliminate a wide variety of inorganic, organic, and microbiological bacteria. The sterilization system is especially helpful in eliminating odors and hygienic maintenance. The in-line water heater and ozone sterilization automatically engage when the hydro massage push control is pressed down when turning on your jets. The hydro massage intensity dial control allows you to adjust the strength of the water stream by adding more or less air into the hydro system.

The Ella Transfer32 has thirteen (13) strategically placed hydro jets in order to deliver optimal therapeutic relief. Seven (7) upper fixed jets work to provide relief to your back, hips and thighs, while four (4) lower adjustable jets massage your feet and calves.

The Hydrotherapy Massage System’s most popular control system is the on/off push control because the buttons were designed to rise above the deck in order to make it easier to push. A smaller, digital controller is also available for the Air Hydrotherapy Massage Package, but may be more difficult for elderly to see and operate.

Air Massage System

The Air Jet Massage System includes an air pump with a 3-speed variable push control, strategically positioned air jets for optimal therapeutic relief, and an auto-purge to maintain an air system free of any build ups. The Air Massage System’s most popular control system is the on/off push control because the buttons were designed to rise above the deck in order to make it easier to push. A smaller, digital controller is also available for the Air Hydrotherapy Massage Package, but may be more difficult for elderly to see and operate.

The Transfer32 has seventeen (17) strategically placed air jets that pull in air and blow it into the water to create a gentle, relaxing massage. Eleven (11) upper, fixed flat jets work to provide relief to your back, hips and thighs, while an additional six (6) floor jets located in the lower foot area deliver a gentle massage to your feet and legs. Additionally, two (2) of the eleven (11) upper air jets are bidet jets.

The Air Jet Massage System also includes an auto-purge feature. This feature engages automatically 20 minutes after the pump has been turned off to purge water out of the air jet lines. The auto-purge will run for 120 seconds to ensure your system is clear and free of moisture and excess water helping to prevent the mildew build up.

Note: This massage is more gentle than a Hydrotherapy Massage.

The main feature of the Ella Transfer walk-in tubs is the aluminum L-Shape Outward Swing Door. While it was designed for wheelchair users and those with mobility issues, it has become very popular amongst everyday users due to effortless access into the tub. The door’s distinct shape and the engineering of the outward swing allows the door to clear a 21" tall toilet and create a wide entry for an easy transition from wheelchair into a smooth acrylic seat.

Our aluminum frame outward swing L-shaped door is equipped with our unique gear and shaft driven 2-latch door edges out our competition who typically use a single latch/lever system. A 2-latch door system provides a more secure and watertight door seal than the conventional single latch system, providing you with a leak-free bathing experience.

Digital Control

The digital control is our more modern option, giving you a digital keypad from which to control your jets and additional features such as Chromatherapy LEDs and heated seat & backrest. Since the Digital Control is smaller, it may be more difficult for elderly to see and operate.

Ella 5 Piece Fast Fill Faucet

The 5-Piece fast-fill faucet has five (5) pieces: two temperature levers, a diverter lever, a mounted faucet and a pull out multi-functional hand shower. To control the temperature of the water, use the hot or cold lever. The third lever can divert the water between the mounted faucet and hand shower. The 5-Piece faucet has a fill rate of 18 GPM (gallons per minute), based on plumbing conditions.

Dual 2" Drains

The best fast drain in industry – no power required! Ella gravity driven 2″ dual drain technology with independently operated 2 openers, 2 overflows for fast and reliable drainage and exit out of the walk-in tub. This drain can be connected to 4 x two inch outlets vs. one 1 1/2" standard bathtub drain.
