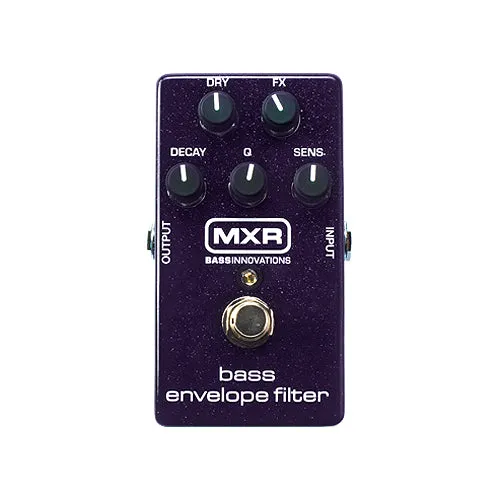

The Bass Envelope Filter delivers classic, analog, envelope filter sounds in an easy-to-use and compact pedal designed specifically for bass. It's all packaged in a durable, lightweight, Phase 90-size aluminum housing for the ultimate in portability and pedalboard space-saving dimensions.
Features:
- Effects Type: Envelope Filter
- Classic envelope filter sounds.
- Separate Dry and Effect signal controls.
- Organic analog tone.
Specifications:
- Input Impedance: 1 MΩ
- Output Impedance: 100 Ω
- Max Input Level: -15 dBV
- Max Output Level: 8 dBV
- Noise Floor: -94 dBV
- Filter Sweep (fc): 76 Hz to 3.2 kHz
- Sensitivity Range: 46 dB
- Decay Stop Freq.: 76 Hz to 1.3 kHz
- FX Range: -∞ to 0 dB
- Dry Range: -∞ to 6 dB
- Bypass: True Hardwire
- Current Draw: 6 mA
- Power Supply: 9 Volts DC
