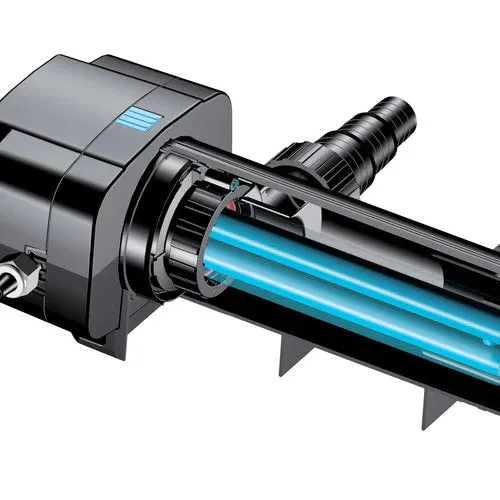

The Vitronic is a simple and effective UV Clarifier designed to operate with all filter systems. Integrating the unit into your water features' filtration system results in algae-free, clear water for your enjoyment. It will improve the water quality of your pond, ensuring an Nature-friendly environment for koi and other fish stock. The quick-lock ballast head allows for easy changing of the UV bulb and cleaning of the quartz glass.
Effectiveness of the UV operation can be monitored through the Vitronics' indicator lighting. The unit is easy to use and installed with minimal maintenance. When used with BioSmart products, Vitronic becomes a modular part of the filter system with no extra plumbing needed - the UV Clarifier hooks onto the filter box with all accessories included. UVC bulbs should be changed annually, ideally in spring before the season starts to guarantee the full UVC output.
- Vitronic 9W is suited for cleaning the green out of ponds up to 2,500 gallons;
- Vitronic 18-36W are designed to operate with all filter systems, although best suited for the BioSmart 5000-10000 filters;
- Easily integrated into an existing or new pond system, Vitronic UV Clarifiers clean the green out of water;
- High quality UVC bulbs guarantee a long service life, and a constant effective irradiation capacity;

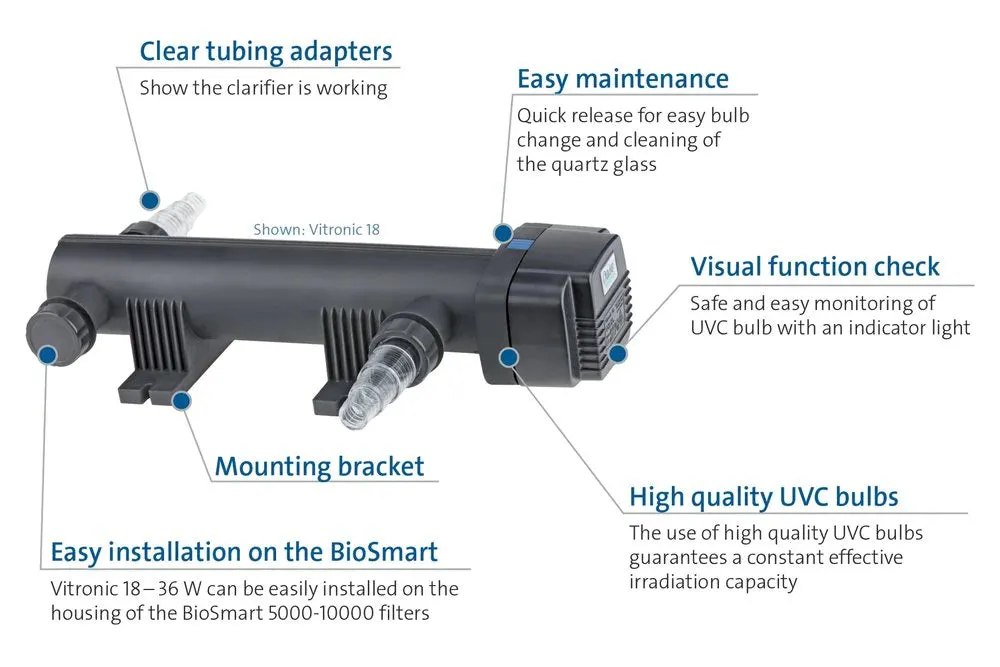

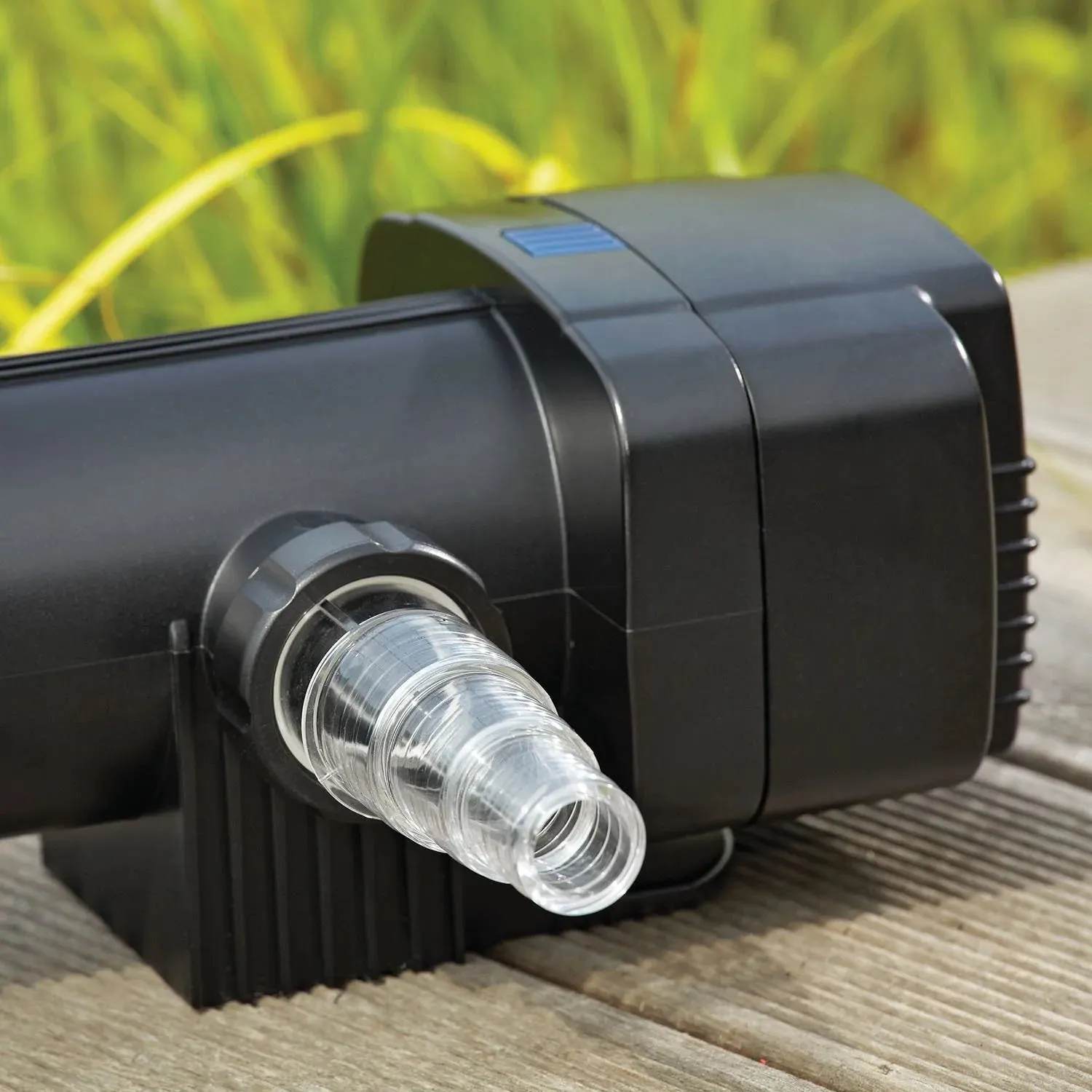

- Safely confirm that the UVC is working with clear tubing adaptors and the visual inspection window at the top of the filter;
- Quick release provides easy UV unit opening and closing for easy bulb change and cleaning of the quartz glass;
- UVC bulbs should be changed at regular intervals, ideally in spring before the season starts, to guarantee the full capacity of the UVC output;
- When properly sized, paired, and registered online, this product qualifies for the Clear Water Guarantee;
- Included 2 year warranty.
Specs | Vitronic 9 | Vitronic 18 | Vitronic 36 |
Dimensions | 13 x 5 x 3.9 in. | 21 x 7 x 5 in. | |
Rated voltage | 120V / 60 Hz | ||
Power consumption | 10 watts | 18 watts | 36 watts |
Power cable length | 10 ft. | 15 ft. | |
Net Weight | 2.9 lbs. | 4.67 lbs. | 5.03 lbs. |
UVC Power | 9 watts | 18 watts | 36 watts |
Max. Flow Rate | 500 gph | 925 gph | 1585 gph |
No. of outlets | 1 | 2 | |
Outlet size | 3/4, 1, 1.25, 1.5 in. | 1, 1.25, 1.5 in. | |
No. of inlets | 1 | ||
Inlet size | 3/4, 1, 1.25, 1.5 in. | 1, 1.25, 1.5 in. | |
Max. Operating Pressure | 7.25 psi / 17 ft. of head | ||
Suitable for ponds up to max. | 2500 gal | 5000 gal | 10000 gal |
Suitable for ponds with fish stock | 1250 gal | 2500 gal | 5000 gal |
Suitable for ponds with koi | 625 gal | 1250 gal | 2500 gal |
Warranty | 2 Years | ||
Downloads | & | ||
Part Number | 45427 | 56455 | 40350 |
