Underwater Photography and Videography
PowerRay's integrated 4K UHD camera allows filmmakers to shoot underwater content for movies, research,and creative underwater photography. Take control of PowerRay and explore the underwater world!
Max Sailing Speed 4kn
PowerRay's cutting edge design features two horizontal thrusters and one vertical thruster, allowing PowerRay to swim freely in still water up to 4knots
Extraordinary long dive times
With an amazing up to 4 hrs. diving time on a single charge, staying underwater has never been so easy.
Dive As Deep As 98 ft. Underwater
The Powerray is 100% waterproof and allows a maximum underwater diving depth of 98 feet. Satisfying the needs of divers, fish-seeking, and underwater monitoring.
Built-in Video Stabilization Mode
The new video stabilization feature adjusts and holds shooting angles for filming. (-30° to 10°).Allowing smoother video shoots allow you to capture content like a pro!
Depth Hovering Mode
PowerRay's fixed depth hovering mode can reach a - 4 inch accuracy. You'll never get lost when following your target with this feature
Front Light
PowerRay's built-in LED front lights allow you ample amount of light for underwater shooting and can take you exploring the deep ocean!
PowerRay Product Specifications
PowerRay
Dimensions465x270x126mm
Weight~3.8kg （In air）
Operating Temperature32° ~104° F （0~40℃）
Depth Capacity30m
Depth Accuracy±10cm
Max Cruise Speed3Kn（1.5m/s）（Still water）
Max Sailing Time4h （Still water,light use）1.5h（Still water,L speed mode cruise）0.5h（Still water,H speed mode racing）
Charging Time≤2.5h
Thruster Configuration3 thrusters （2 horizontal ,1 vertical）
Battery94.72Wh（14.8V 6400mAh) LiPo
Battery Cycle Time≥100
Camera
LensFOV 95°（In air） F2.8
Sensor1/2.3 inch CMOS，Effective pixels:12M
Image Size12M: 4000×30004:3 (default)
8M:3840×2160 16:9
5M:2560×1920 4:3
Video Resolution4K： 3840×2160 25fps(default)
1440P：2560×1440 50fps
FHD：1920×1080 30/60fps
ISOAuto / 100 / 200 / 400 / 800 / 1600
Burst Shooting1/3/5 frames
Storage32G/64G
Lights
Power3Wx2
Brightness450 lumens（with dimming control）
Color Temperature6500K
Live View
Live View Quality720P 25fps/1080P 30fps
Max Transmission Distance≥10m
Operating Frequency2.4~2.483GHz
EIRP≤20dbm
Latency≤300ms
Fishfinder
Operating Frequency125KHz
Track Angle30°
Track Depth0.6-40m
Operating Temperature0~40℃
WirelessWIFI 2.4~2.483GHz
EIRP≤20dbm
Wi-Fi range90m
Resolution0.1m
Operating Time≥2h
Charging Time≤3h

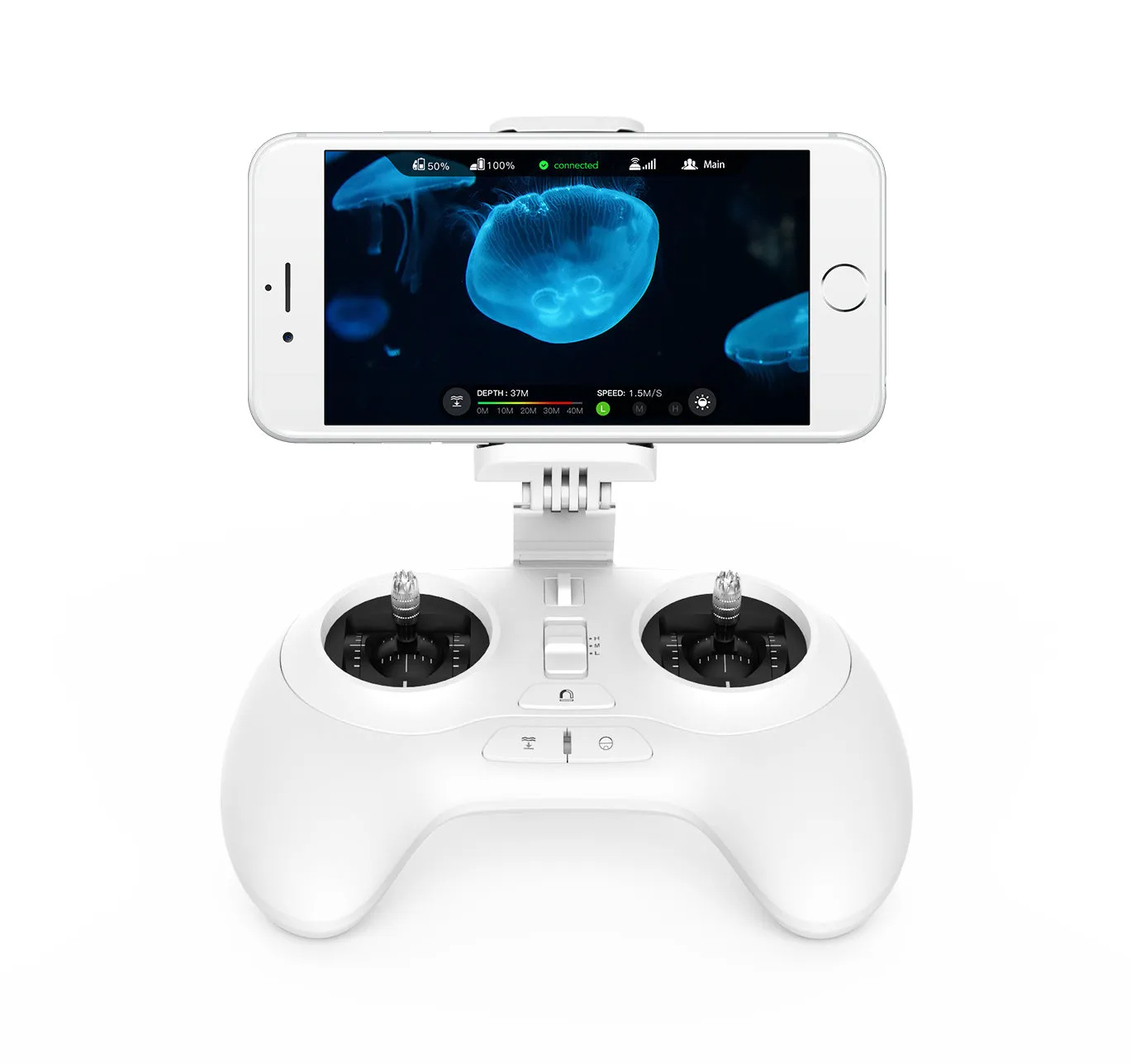

Remote Controller
Operating Frequency2.4~2.483GHz
EIRP≤20dbm
Max Transmission Distance10m
Battery3000mAh LiPo 1S
Operating Time≥20h
Charging Time≤3.5h
Operating Temperature0~40℃
Supported Mobile Device Sizelength: 41~175mm
Base Sation
Operating Frequency2.4~2.483GHz
EIRP≤20dbm
Battery3000mAh LiPo 1S
Operating Time≥3h
Charging Time≤2.5h
Communication Cable
Diameter4.2mm
Length50m/70m
Working Strength30kg
Charger
InputAC100-240V 50/60Hz 1.6A
Output116.8V/4.5A(M16 waterproof connector）
Output25.0V/2.0A（M12 waterproof connector）
Output35.0V/2.0A(Micro USB)
Output45.0V/0.2A(USB)
Bait Drop
Weight8g
Supported Weight≤120g（in the water）
FOV100°
VR Goggle
IPD53~77mm
Supported Mobile Device Size4.7’~5.5′
Wear Glasssupport
App
iOSiOS 8.0 or later
AndroidAndroid 4.2 or later
Supported Mobile Device
