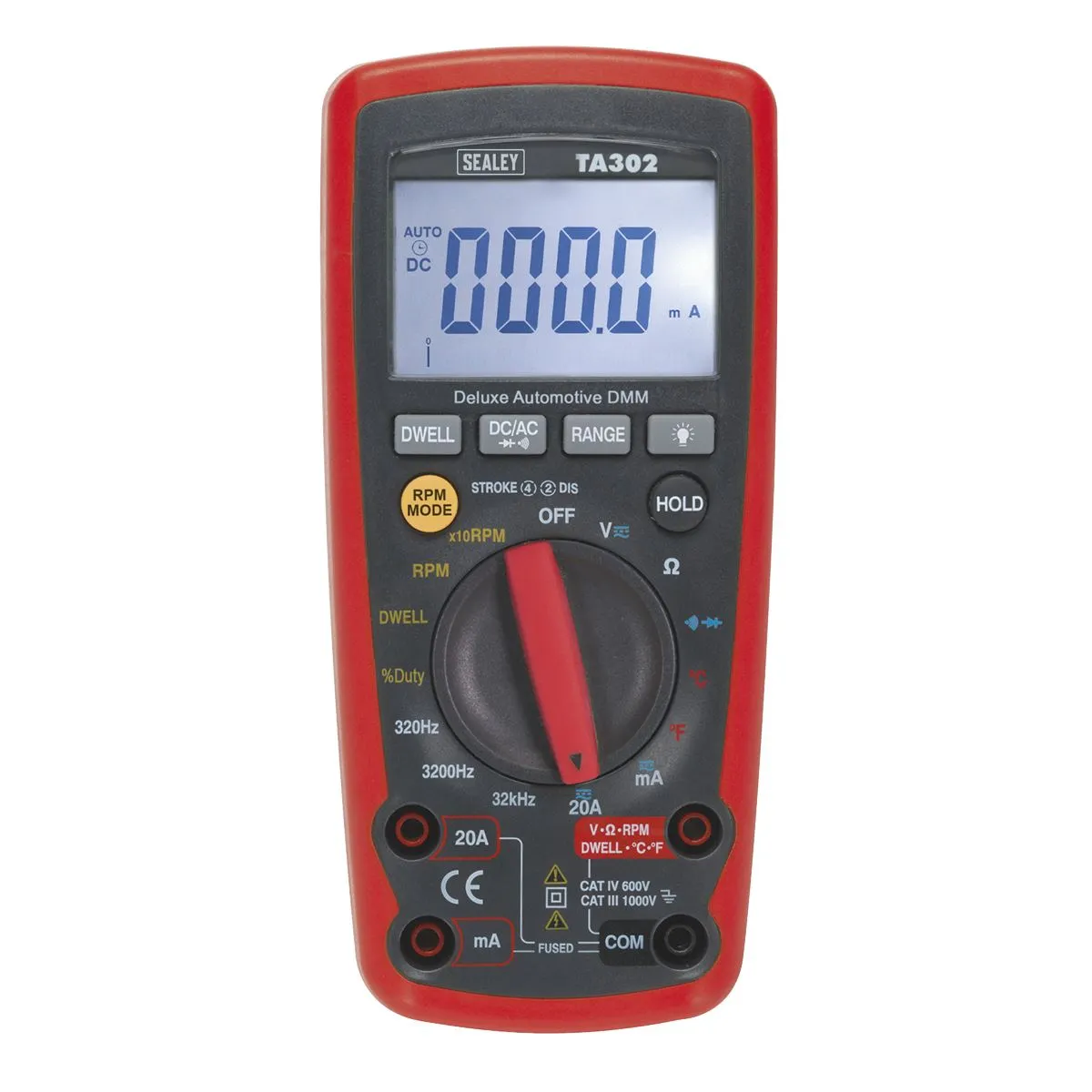

12-Function, auto-ranging automotive diagnostic multimeter.

Combination digital/bar graph display gives accurate indication of component outputs.

Large, easy-to-read high contrast display with bright, white back light.

Workshop-tough, durable case with integral stand.

Reads standard automotive parameters including duty cycle.

Features auto-ranging and data-hold functions with overload protection on all ranges.

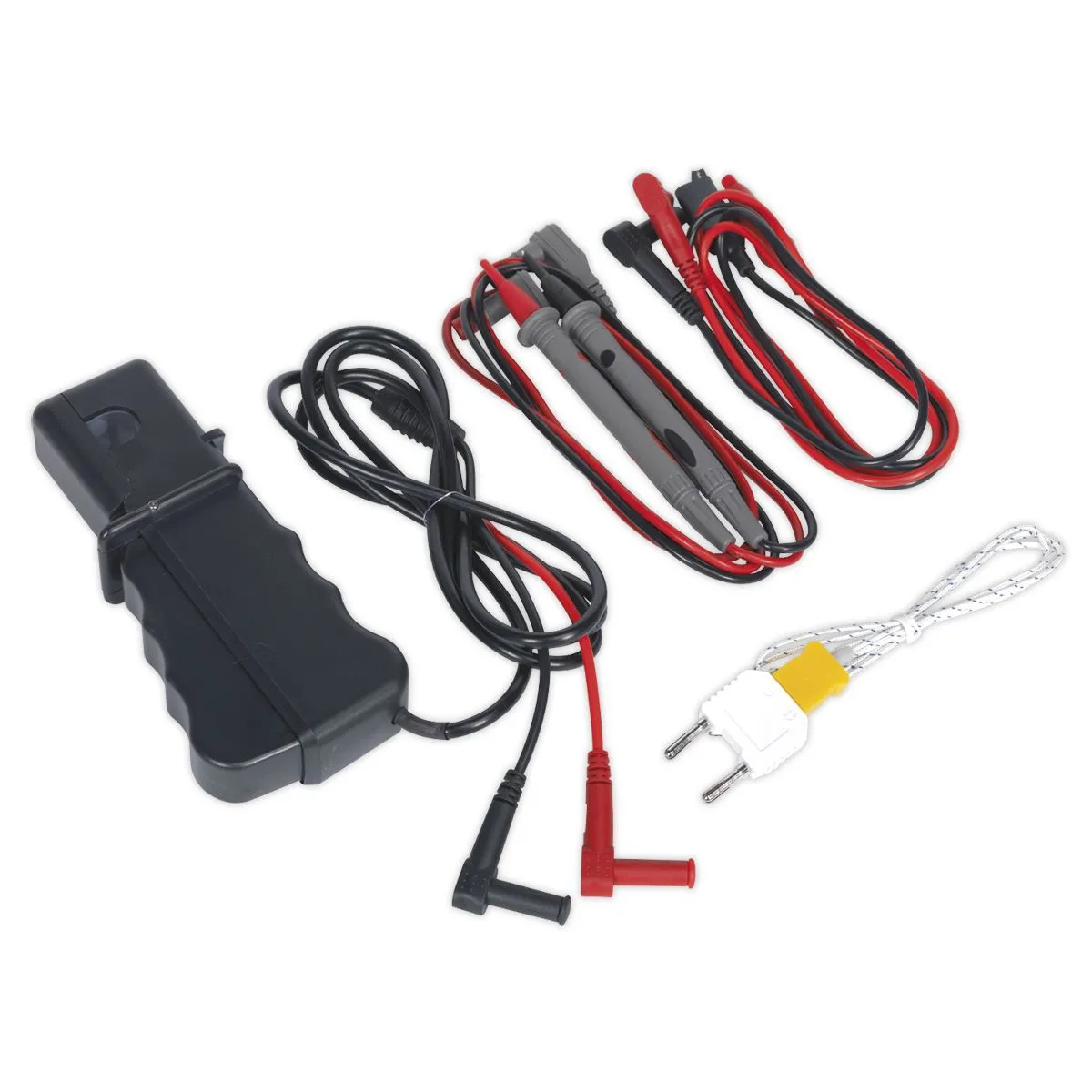

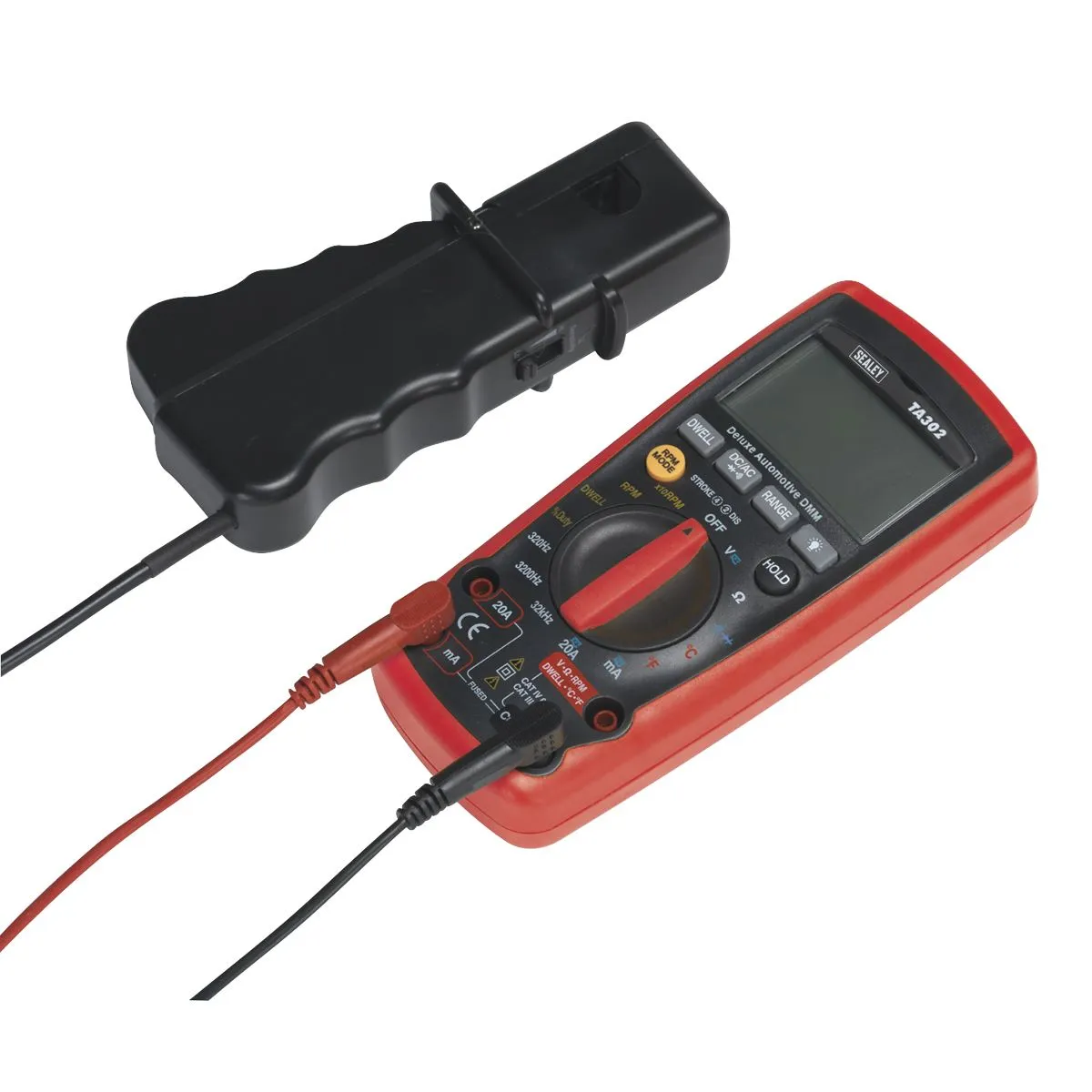

Supplied with inductive coupler, test probes and thermocouple.

Specification:

• Model No TA302
• Brand: Sealey
• Nett Weight: 366g
• Tach (rpm): 4-8cyl, 2 & 4-Stroke 600-4000 (x1)rpm, 600-12000 (x10)rpm
• Dwell: 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°
• AC Voltage: 3.2V, 32V, 320V, 600V (Auto-Ranging)
• DC Voltage: 320mV, 3.2V, 32V, 320V, 600V (Auto-Ranging)
• AC Current: 320µA, 3200µA, 32mA, 320mA, 10A (Auto-Ranging)
• DC Current: 320µA, 3200µA, 32mA, 320mA, 10A (Auto-Ranging)
• Capacitance: No
• Frequency: 320Hz, 3200Hz, 32kHz (Auto-Ranging)
• Duty Cycle: 0.1-99.9%
• Pulse Width: No
• Resistance: 320Ω, 3.2kΩ, 32kΩ, 320kΩ, 3.2MΩ, 32MΩ (Auto-Ranging)
• Continuity: <35Ω Continuity Buzzer 2kHz
• Temperature: -20 to 760°C, -4 to 1400°F
• IR Temperature: No
• Diode Check: Yes
• Transistor Test: No
• Back Light: Yes
• Bar Graph Display: Yes
• Display Hold: Yes
• Auto-Ranging: Yes
• Inductive Coupler: Yes
• PC Interface: No
• Digits Height: 18mm
• Auto Power Off: n/a
• Low Battery Indicator: Yes
• Batteries (supplied): 9V (PP3)
• Hi-Impact Case: Yes
• Size (L x W x D): 167 x 79 x 50mm
• Weight: 366g
