Description

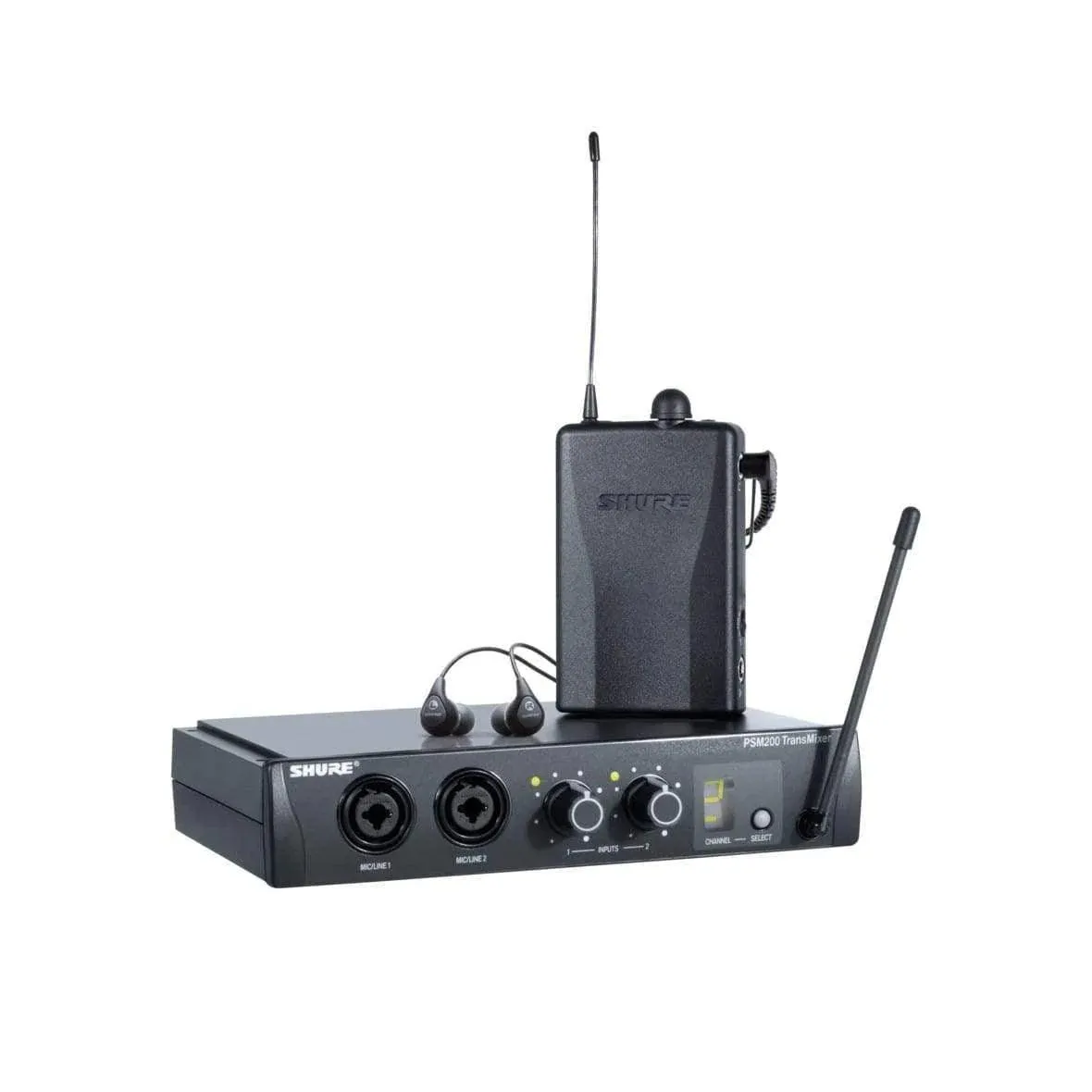

The Shure PSM 200 professional in-ear personal monitoring system is your entry into the world of in-ear monitoring, it contains a pair of SE112 sound isolating earphones, a P2R wireless bodypack receiver, and a P2T wireless transmitter. Features include a built-in audio limiter, 2 mic/line input channels for mix control, and volume control on the bodypack receiver.
Features
- P2R Wireless Bodypack Receiver
- Can operate as a wired or wireless bodypack, or both simultaneously
- Frequency locator
- Built-in headphone limiter
- Integrated cable management
- High-impact plastic chassis
- 1/4" Line input jack with high/low gain switch

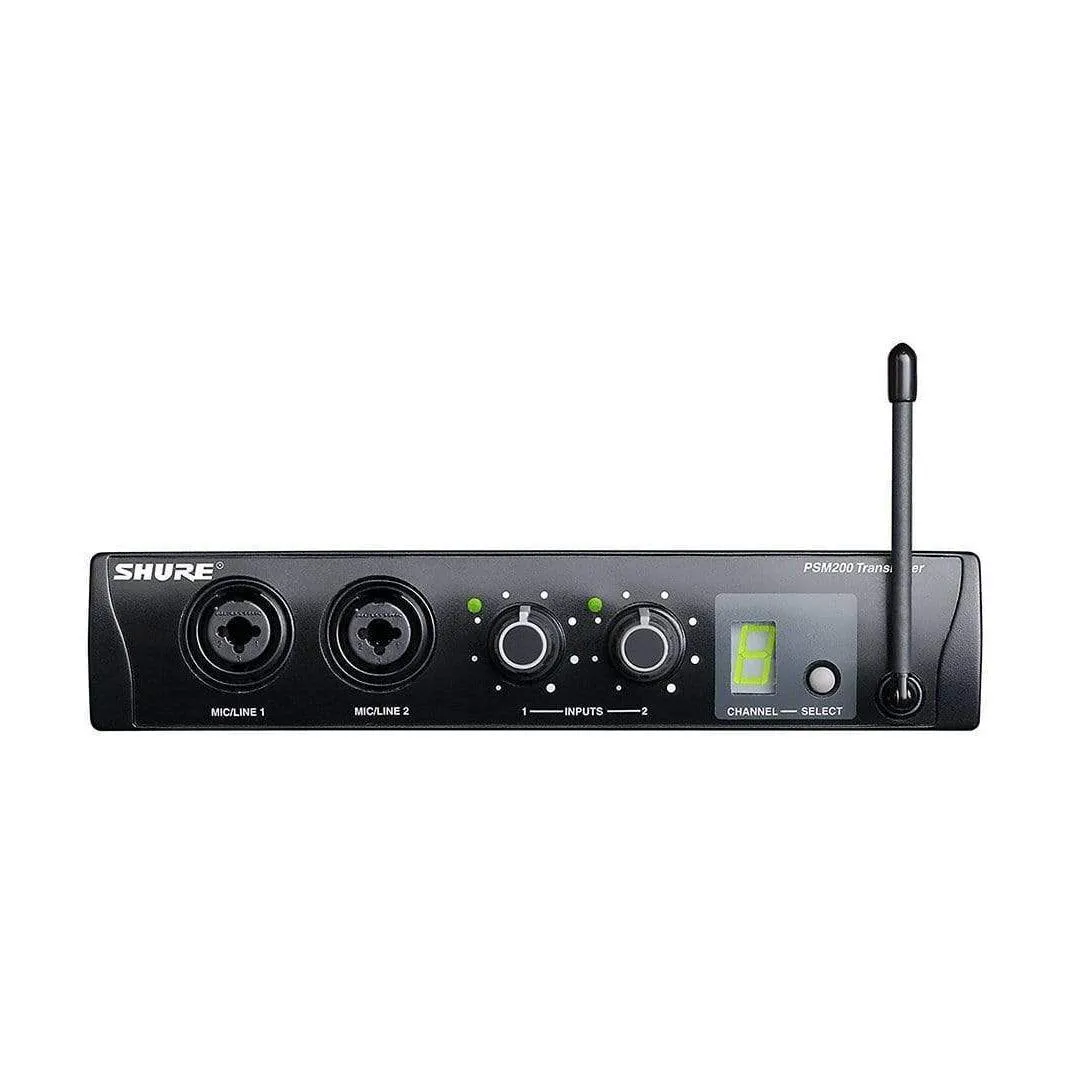

- P2T PSM 200 In-Ear Monitoring Wireless TransMixer
- Built-in audio limiter
- Front-mounted antenna
- Two mic/line input channels for mix control
- 1/2 Rack space
Operating Controls
- Input level control
- Frequency select
- LED Indicators
- Tri-color input level
- Frequency
- Inputs
- Two Mic/line, XLR-1/4 in. combo input channels
Outputs
- Two XLR split outputs
- Professional Sound Isolatingª Earphones
- Single dynamic driver delivers great sound performance in a discrete, durable design.
- Sound Isolatingª design featuring fit kit with a variety of sleeves blocks up to 37 dB of outside noise so you can hear the details of your music.
- Fixed cable design allows for earphones to be worn over the ear or hanging down for long-wearing comfort.
- Includes a carrying pouch and fit kit with a selection of sleeves.
| Tech Specs | |
| Set Type: | In-Ear Monitoring Set |
| Amount of Bodypacks: | 1 |
| Amount of earphones: | 1 |
| P2R Specifications | |
| Weight: | 100 g |
| Height x Width x Depth: | 122.0 _ 73.0 _ 32.0 mm |
| Battery life lithium: | 8 h |
| Battery life alkaline: | 6 h |
| RF Sensitivity: | -109 dBm, for 12dV SINAD, typical |
| Squelch Threshold: | -102 dB SINAD |
| Minimum load impedance: | 8 ½ |
| Bodypack Diversity: | No |
| Detachable Antennas: | No |
| Transmission: | Analog |
| Batteries: | 9V |
| Receiver Housings: | Molded ABS |
| P2T Specifications | |
| Weight: | 370 g |
| Height x Width x Depth: | 40.0 _ 220.0 _ 140.0 mm |
| Number of compatible systems per frequency band: | 4 |
| Operating Range (up to): | 100 m |
| RF mute: | No |
| Detachable Antennas: | No |
| Maximum input signal: | -5 dBu |
| Input impedance: | 1000 ½ |
| Transmission: | Analog |
| Rack Hardware: | Included Rack mounts brackets |
| Included antenna: | External 1/4-wave |
| Type of Power Supply: | External |
| Functionality: | Transmixer |
| Input connectors: | XLR, 6,3 mm |
| Output connectors: | XLR |
| Transmitter housings: | Molded ABS |
| SE112-GR Specifications | |
| Weight: | 30 g |
| Sound signature: | Great sound deep bass |
| Sensitivity: | 105 dB SPL/mW |
| Impedance: | 16 ½ |
| Frequency Range: | 25 Hz Ð 17 kHz |
| Cable length: | 127 cm |
| Sound Isolation (up to): | 37 dB |
| MicroDriver: | Single Dynamic |
| Cable type: | Fixed |
| Connection Type: | Cable |
| Color Options: | Grey |
