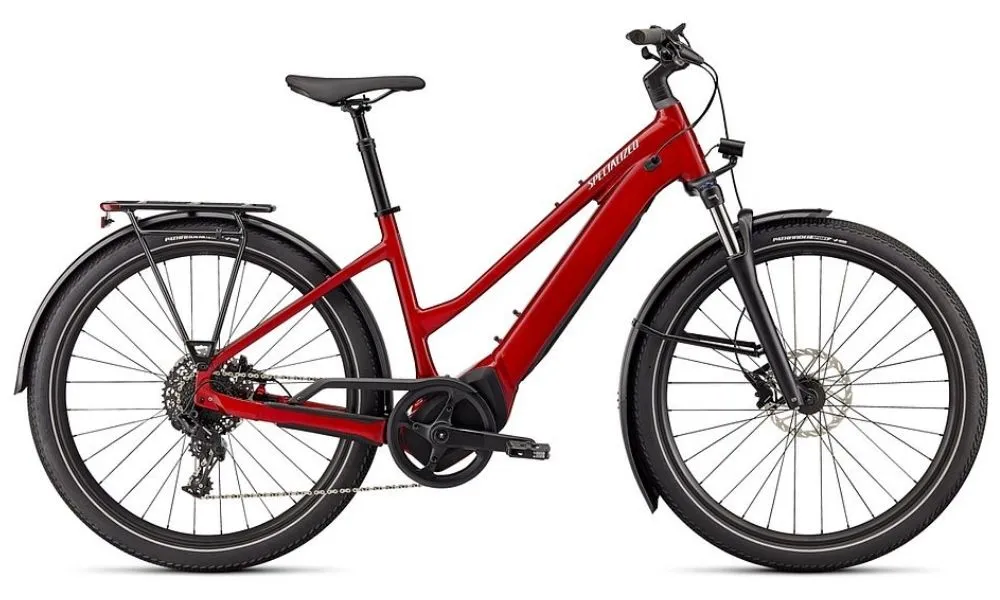

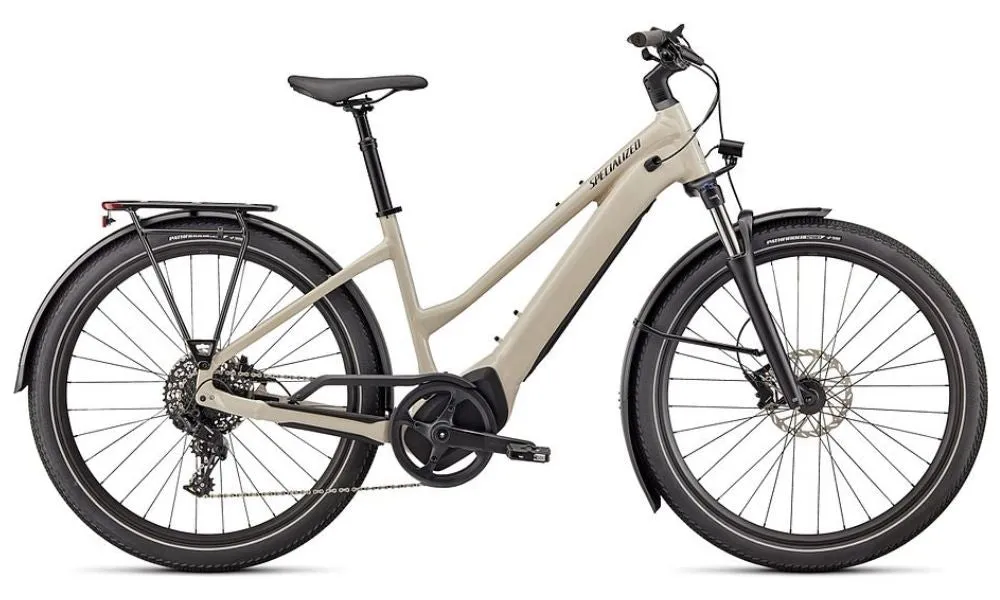

Specialized 2022 Vado 4.0 Step-Through

Vado is the vehicle for everything from daily commutes to fast workouts to longer-than-planned adventures—an electric bike for life. The smoothest-riding e-Bike experience yet, Vado is designed to boldly take on the ever-changing landscape you’ll encounter as a daily rider, carry whatever you need it to, and keep you riding more often.

Redesigned geometry puts you in the best position for everything from workouts to commutes while comfortably keeping your eyes on busy roads. We took learnings from the speed a road rider seeks and the maneuverability a mountain bike rider needs. The rider's position on the Vado instills confidence and, at the same time, optimizes the rider's ability to efficiently power from A to B.

• Turbo Full Power 2.0 motor and 710Wh battery offer an unparalleled riding experience, providing a smooth, seamless, and shockingly quiet amplification of your efforts, up to 28 mph. The integrated controller responds to your pedal inputs resulting in intuitive amplification of your efforts with an incredibly natural feel.

• MasterMind and Mission Control - The MasterMind display reveals all relevant info about your ride, allows real-time tuning of support levels, and enables over-the-air updates so that your bike gets better over time. MasterMind seamlessly integrates with the Mission Control app for range optimization tools, advanced tuning, on-ride diagnostics, and more.

• Proven Smooth Efficiency - We designed a custom testing mechanism to analyze bumps at even the smallest frequency to increase comfort and vision. That precision, paired with a suspended seatpost, higher volume tires, and an 80 mm suspension fork, will flatten roads before your eyes.

• Turbo System Lock - Use the Mission Control app to disable your bike’s motor and activate the motion sensor alarm. Once locked, the motor cannot be enabled again except by the owner.

• Fully Integrated Removable and Lockable Downtube Battery - Easy to charge, easy to secure.

• Equipped with DRYTECH Fenders, LED front and rear lights, and 27kg capacity rear HD Rack. The rear rack is compatible with child bike seats, and the bike is also rated to pull a thru-axle trailer.

Specifications

Specialized 2022 Turbo 4.0 Step-Through

Frame

Colour: Cast Black/Silver Reflective, Red Tint/Silver Reflective, White Mountains/Black Reflective
Frame: E5 Aluminum, bottom bracket motor mount, fully integrated &lockable downtube battery, internal cable routing, lock and front rack mount
Fork: SR Suntour MobieA32, 80mm travel, lockout, fender-mounts, integrated light mount
Shock: N/A
Weight: N/A

Drivetrain

Crankset: Custom alloy forged crankarms
Pedals: N/A
Chain: KMC e11S, 11-speed w/ Missing Link™
Bottom Bracket: N/A
Rear Derailleur: SRAM NX, 11-speed
Front Derailleur: N/A
Derailleur Shifter: SRAM NX, 11-speed
Freewheel/Cassette: SRAM PG-1130, 11-speed, 11-42t
Drive Unit: Specialized 2.0, 70Nm torque, custom tuned motor, 250W nominal
Battery: Specialized U2-710, alloy casing, state of charge display, 710Wh

Wheels

Tyres: Pathfinder Sport Reflect, 650Bx2.3
Wheels/Rims: 650b disc, double-wall alloy, pinned, 32h
Hubs: Front: Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x100mm thru-axle, 32h Rear: Specialized alloy rear hub disc, sealed cardridge bearings, 6-bolt, 12x148mm thru-axle, 32h

Braking System

Brakes: SRAM Level, 2-piston caliper, hydraulic disc, 180mm 6-bolt

Other

Handle Bar: Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm
Stem: Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp
Seat Post: Spring suspension, alloy, 40mm travel, 30.9mm, 2-bolt clamp, 34.9mm sleeve
Saddle: Rivo Sport, steel rails, 155mm
UI/Remote: MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages
Charger: Custom charger, 42V4A w/ Rosenberger plug, 100-240V

Extras

Headlight: Lezyne Ebike Hecto E65, 210 Lumen, 12V
Taillight: Spanninga Commuter Glow XE, 12V
Kickstand: Specialized kickstand, 40mm mount
Rack: Specialized rack, MIK HD inteface, built-in pannier mounts, 27kg max load
Fenders: Specialized DRYTECH fenders, 65mm width, aluminum fenderstay

Goemetry

Specialized 2022 Vado 4.0 Step-Through
