Item Description

UV sensor for high UV irradiance and high operating temperature (170°C)

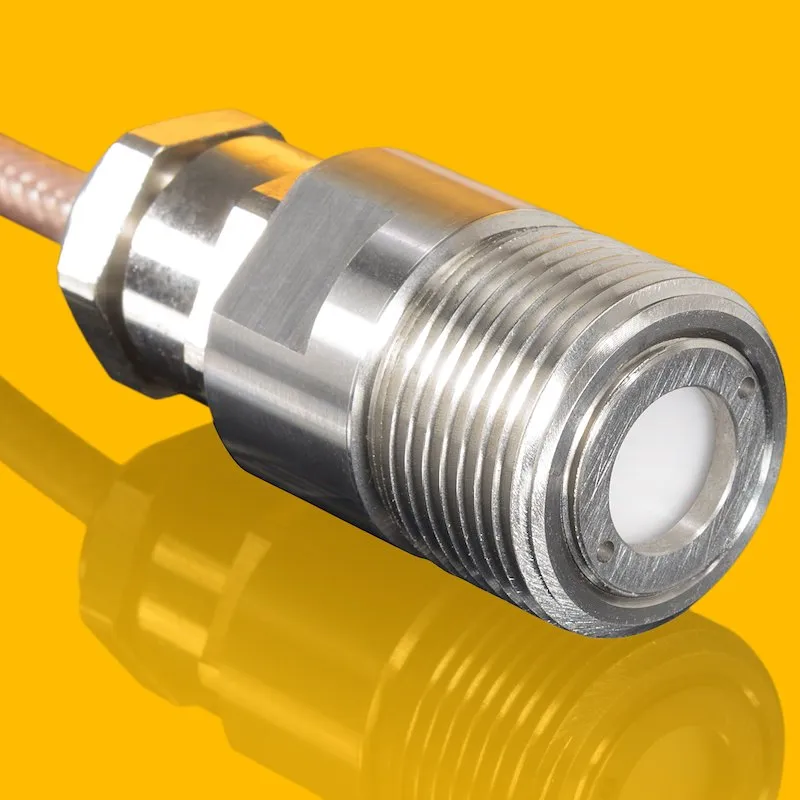

The “UV-Cure-HT” is a UV sensor for high UV irradiance and high operating temperature up to 170°C. Typically this sensor is used for measurement of high UV radiation at high temperature (up to 170°C / 338°F) e.g. for curing and drying processes.

The sensor works with a diffuser made of radiation hard and temperature resistant microporous quartz glass and is configured with a heat resistant cable. The signal output is photocurrent (nA ... μA). The UV-Cure-HT needs an external amplifier (such as sglux RADIKON-simple).

Product Technical Specs

• Summary product specifications are below
• View and download the detailed product sheet at the Download PDF tab
• Please contact us with any questions for or assistance via our  or at 617-566-3821
